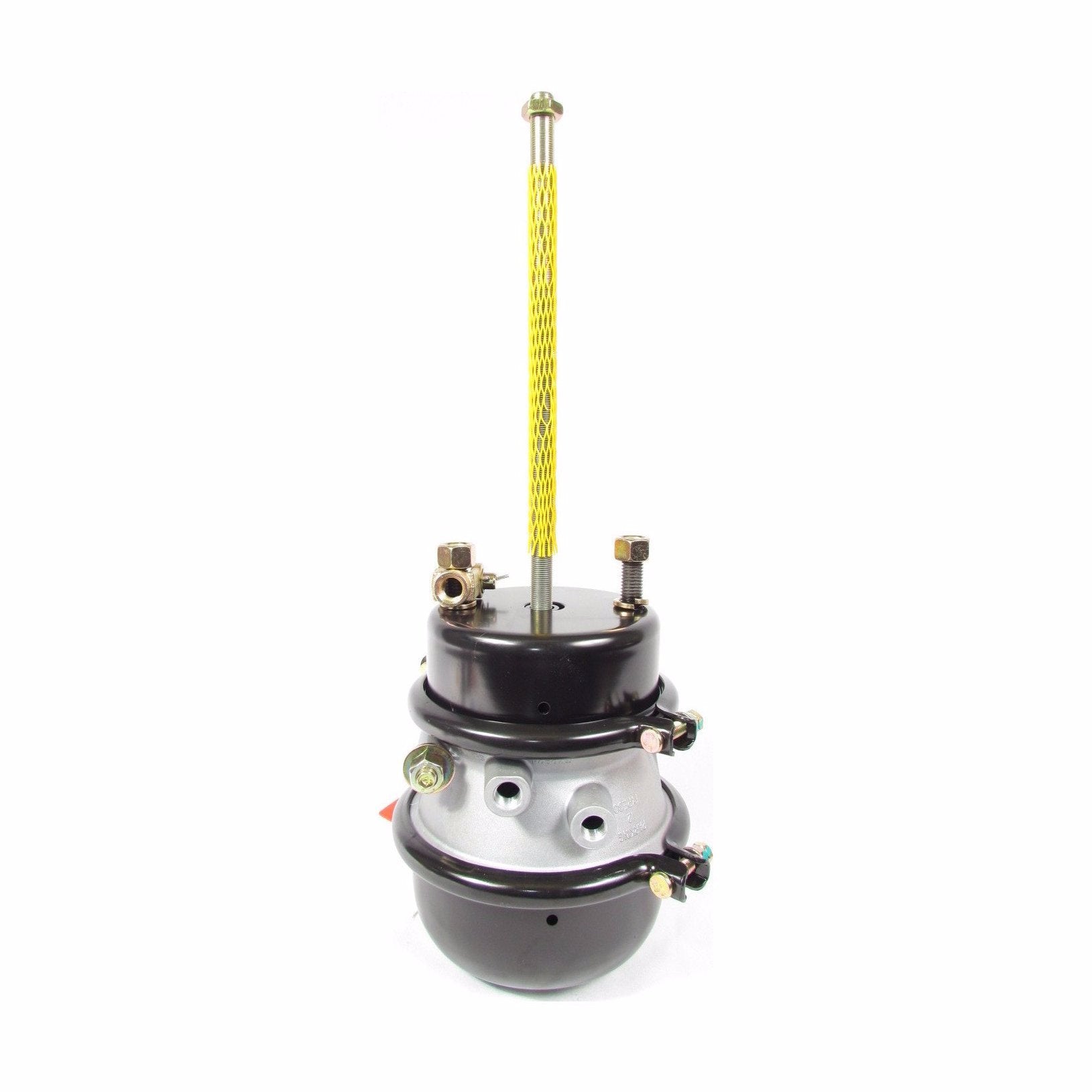

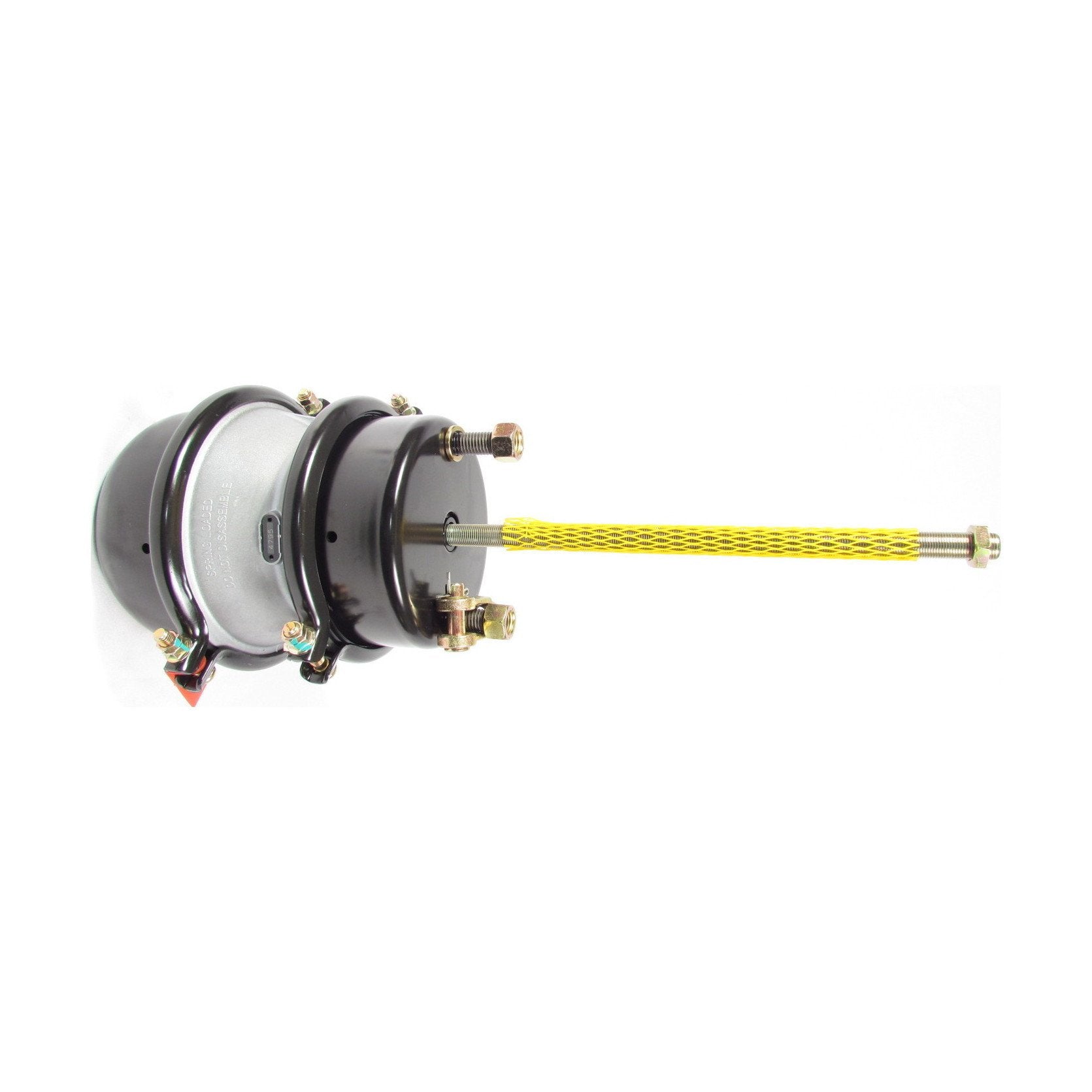

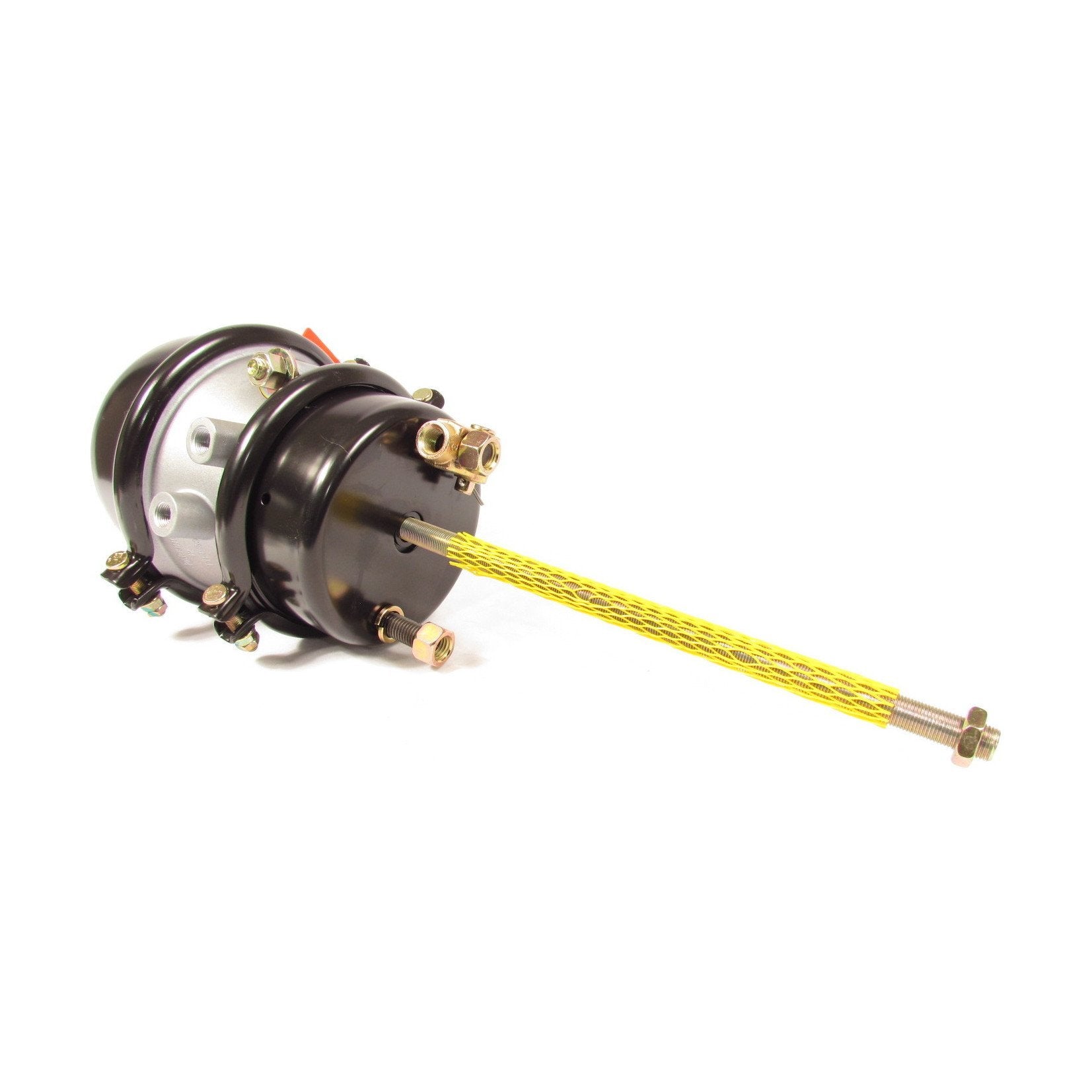

Fortpro 24 30 Brake Chamber - Standard Stroke, Sealed (F224795) | Heavy Duty Truck & Trailer Air Brake Replacement | Ideal for Commercial Vehicles & Fleet Maintenance

Specifications:

• Brand: Fortpro
• Vehicle Type: Semi-Trucks / Heavy Trucks
• Product Department: Brakes
• Product category: Brake Chambers
• Part Type: Air Brake Chamber
• Also Known as: Brake Canister / Brake Can / Air Brake Canister / Brake Pod / Brake Pots
• Chamber Type: Spring Brake Chamber
• Model: Type 2430, T24/30, 24/30, 24-30
• Stroke: Standard Stroke
• Stroke Lenght: 2.25 in.
• Outside Diameter (O.D.): 8.30 in.
• Brake Type Support: Drum
• Serviceability: Sealed
• Push Rod Thread: 5/8-18 UNF-2A
• Push Rod Length: 10.00 in.
• Service Port: 3/8-18 NPTF
• Emergency/Release Port: 3/8-18 NPTF
• Port Angle: 90 °
• Clevis Included: Included
• Clevis Mounting: Threaded
• Maximum Pressure: 150 PSI
• Mounting Bolt Thread: 5/8-11 UNF-2A
• Mounting Bolt Length: 1.52 in.
• Brake System Compatibility: S-Cam
• Chamber Style: Double Diaphragm
• Service Chamber Joint Type: Single Clamp Band

CrossReference:

• Bendix: K026561, 800830
• Euclid: E-GC2430
• Fleetpride: FLTC2430SB20
• Flagg: 2430GC
• Haldex: GC2430
• International-Navistar: 1607380C91, 1607379C91
• Mack: 19QE453RP3
• PAI: EM24300-100
