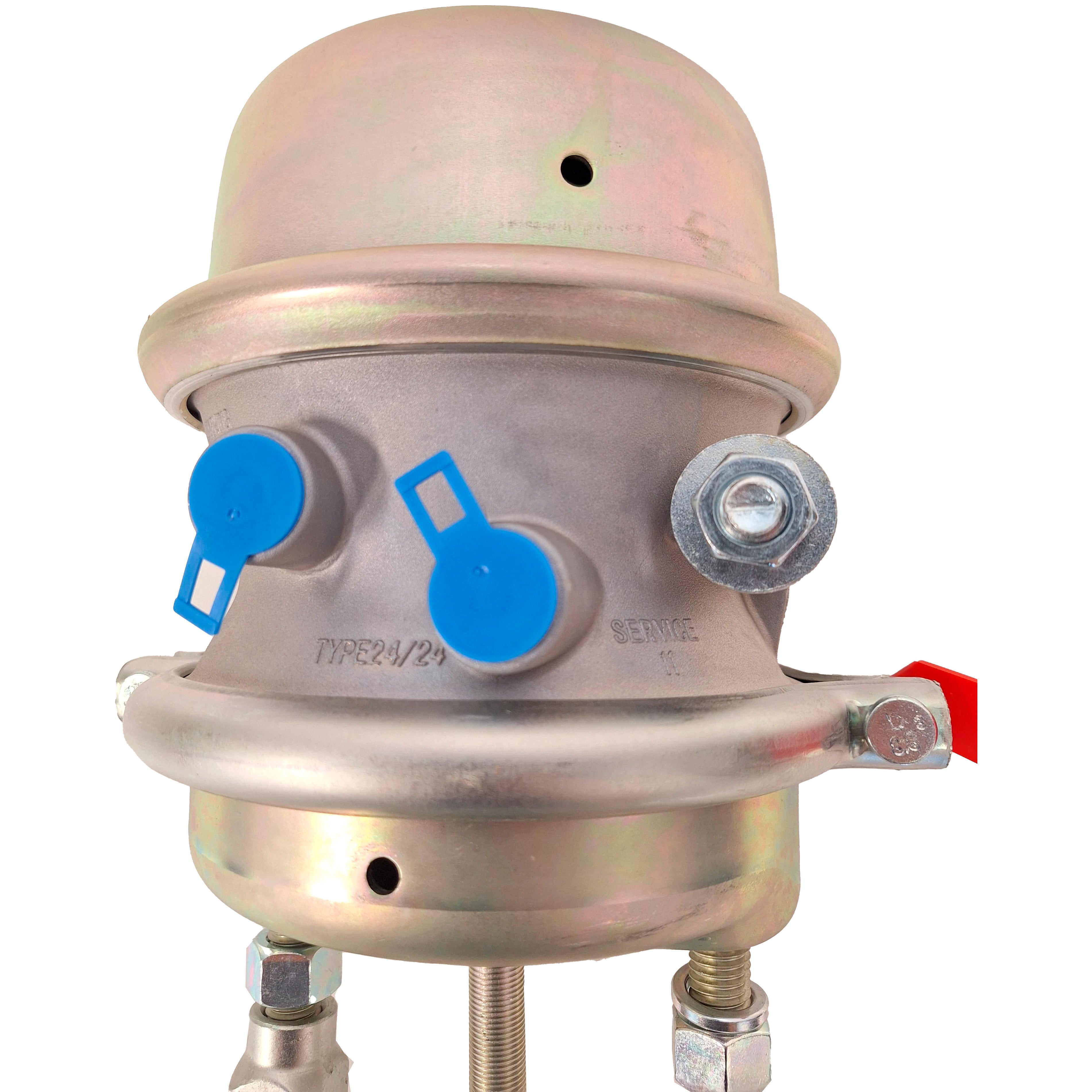

Fortpro 2424 Sealed Brake Chamber - 2.5 Inch Standard Stroke | F224756 | Heavy Duty Truck & Trailer Brake System Replacement Part

Specifications:

• Brand: Fortpro
• Vehicle Type: Semi-Trucks / Heavy Trucks
• Product Department: Brakes
• Product category : Brake Chambers
• Part Type: Air Brake Chamber
• Also Known as: Brake Canister / Brake Can / Air Brake Canister / Brake Pod / Brake Pots
• Chamber Type: Spring Brake Chamber
• Model: Type 2424, T24/24, 24/24, 24-24
• Stroke: Standard Stroke
• Stroke Length: 2.25 in.
• Outside Diameter (O.D.): 7.50 in.
• Brake Type Support: Drum
• Serviceability: Sealed
• Push Rod Thread: 5/8-18 UNF-2A
• Push Rod Length: 9 5/8"
• Service Port: 3/8-18 NPTF
• Emergency/Release Port: 3/8-18 NPTF
• Port Angle: 90 °
• Clevis Included: Included
• Clevis Mounting: Threaded
• Maximum Pressure: 150 PSI
• Mounting Bolt Thread: 5/8-11 UNF-2A
• Mounting Bolt Length: 1.57 in.
• Brake System Compatibility: S-Cam
• Chamber Style: Double Diaphragm
• Service Chamber Joint Type: Single Clamp Band

Cross-Reference:

• Bendix: NT2430STD78
• Euclid: E-GC2424
• Fleetpride: FLTC2424SB20
• Flagg: 2424GC
• Haldex: GC2424
• Mack: 19QE410A
