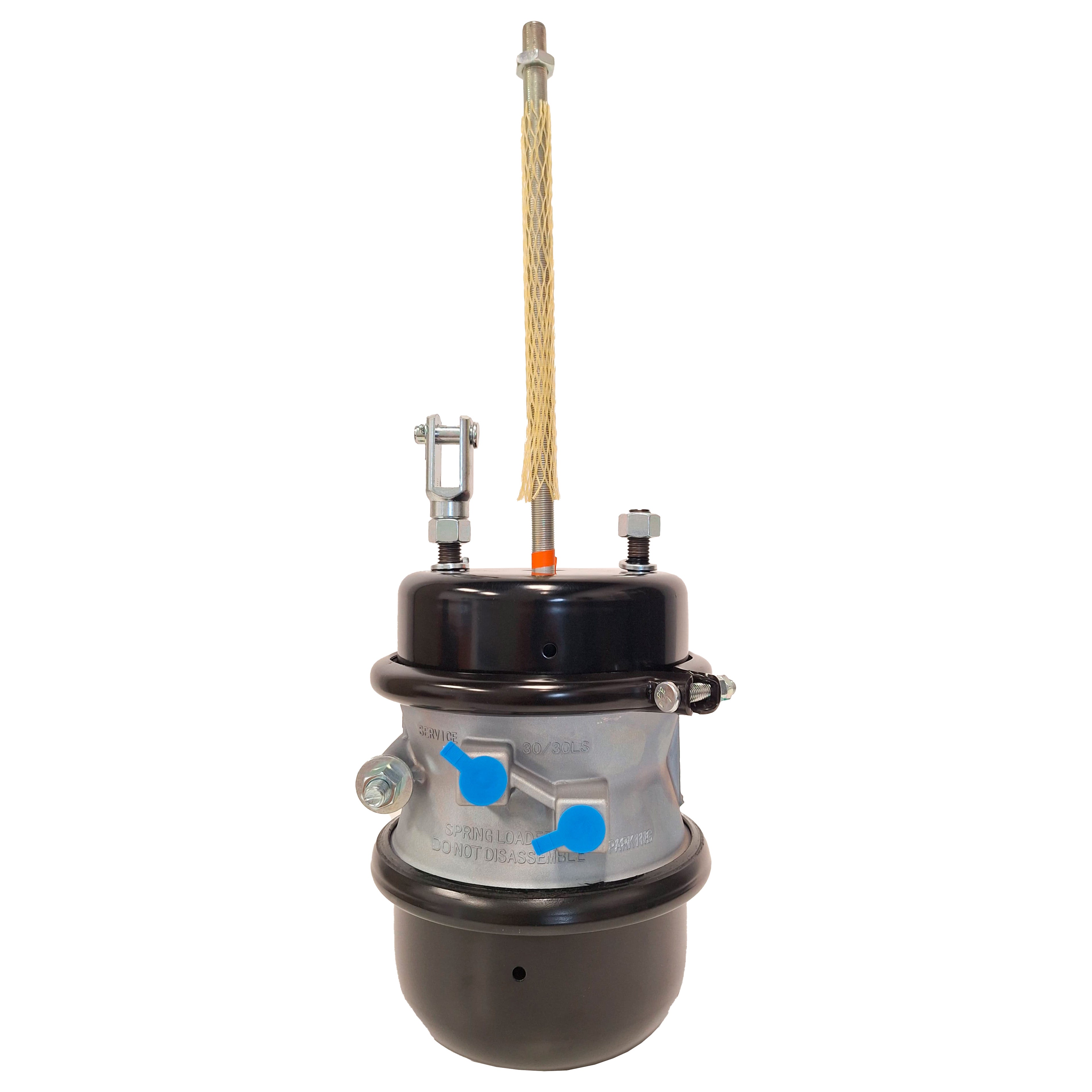

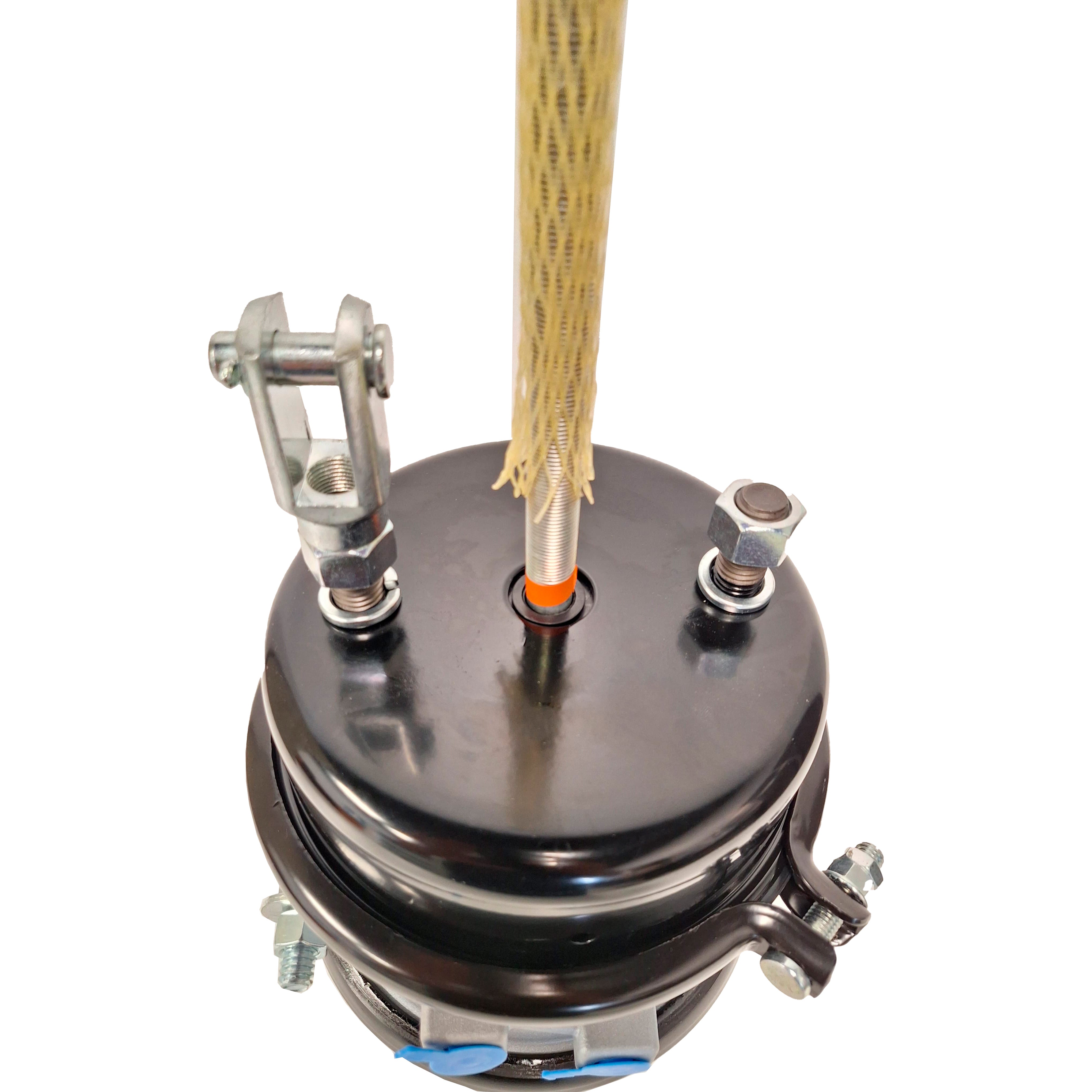

Fortpro 3030 Long Stroke Brake Chamber | F224797 | Heavy Duty Truck & Trailer Air Brake Replacement for Improved Safety & Performance

Specifications:

• Brand: Fortpro
• Vehicle Type: Semi-Trucks / Heavy Trucks
• Product Department: Brakes
• Product category : Brake Chambers
• Part Type: Air Brake Chamber
• Also Known as: Brake Canister / Brake Can / Air Brake Canister / Brake Pod / Brake Pots
• Chamber Type: Spring Brake Chamber
• Model: Type 3030, T30/30, 3030, 30 30
• Stroke: Long Stroke
• Stroke Length: 3 in.
• Outside Diameter (O.D.): 8.30 in.
• Brake Type Support: Drum
• Serviceability: Sealed
• Push Rod Thread: 5/8-18 UNF-2A
• Push Rod Length: 8 in.
• Service Port: 3/8-18 NPTF
• Emergency/Release Port: 3/8-18 NPTF
• Port Angle: 90 °
• Clevis Included: Included
• Clevis Mounting: Threaded
• Maximum Pressure: 150 PSI
• Mounting Bolt Thread: 5/8-11 UNF-2A
• Mounting Bolt Length: 1.48 in. (37.5 MM)
• Brake System Compatibility: S-Cam
• Chamber Style: Double Diaphragm
• Service Chamber Joint Type: Single Clamp Band

Cross-reference:

• Automann: 179.SB3030SL
• Bendix: NT3030ELS80, NT3030ELSWC
• Dayton: 3030CLW
• Euclid: E-GC3030L, EBC3030CEL
• Fleetpride: OTR3030SBLS
• Freightliner: HDX1373030059
• Haldex: GC3030L, GC3030LCW
• International-Navistar: 3508360C91
• MGM: 3230951
• New Life: 1010476
• S&S Truck Parts Inc: S17204
