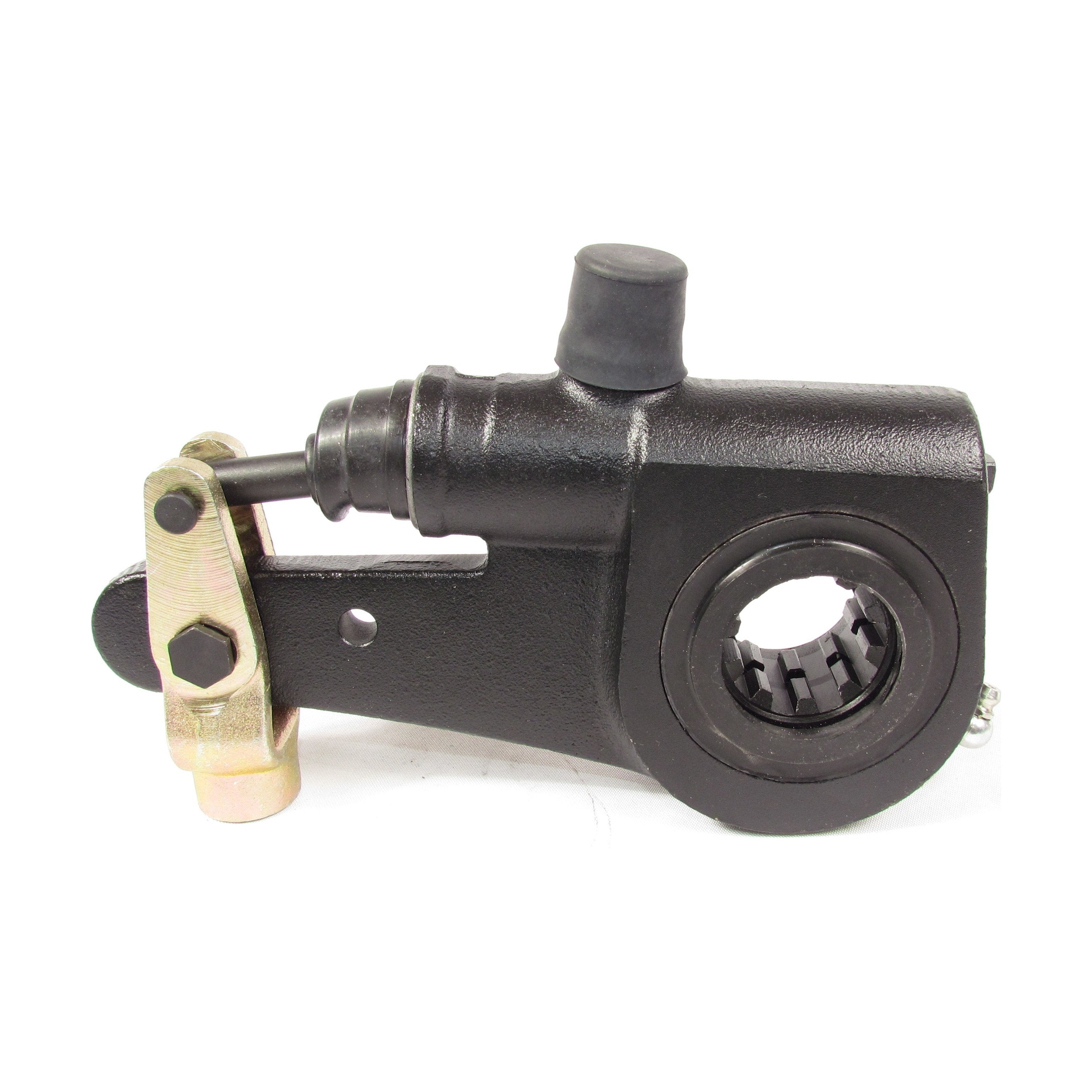

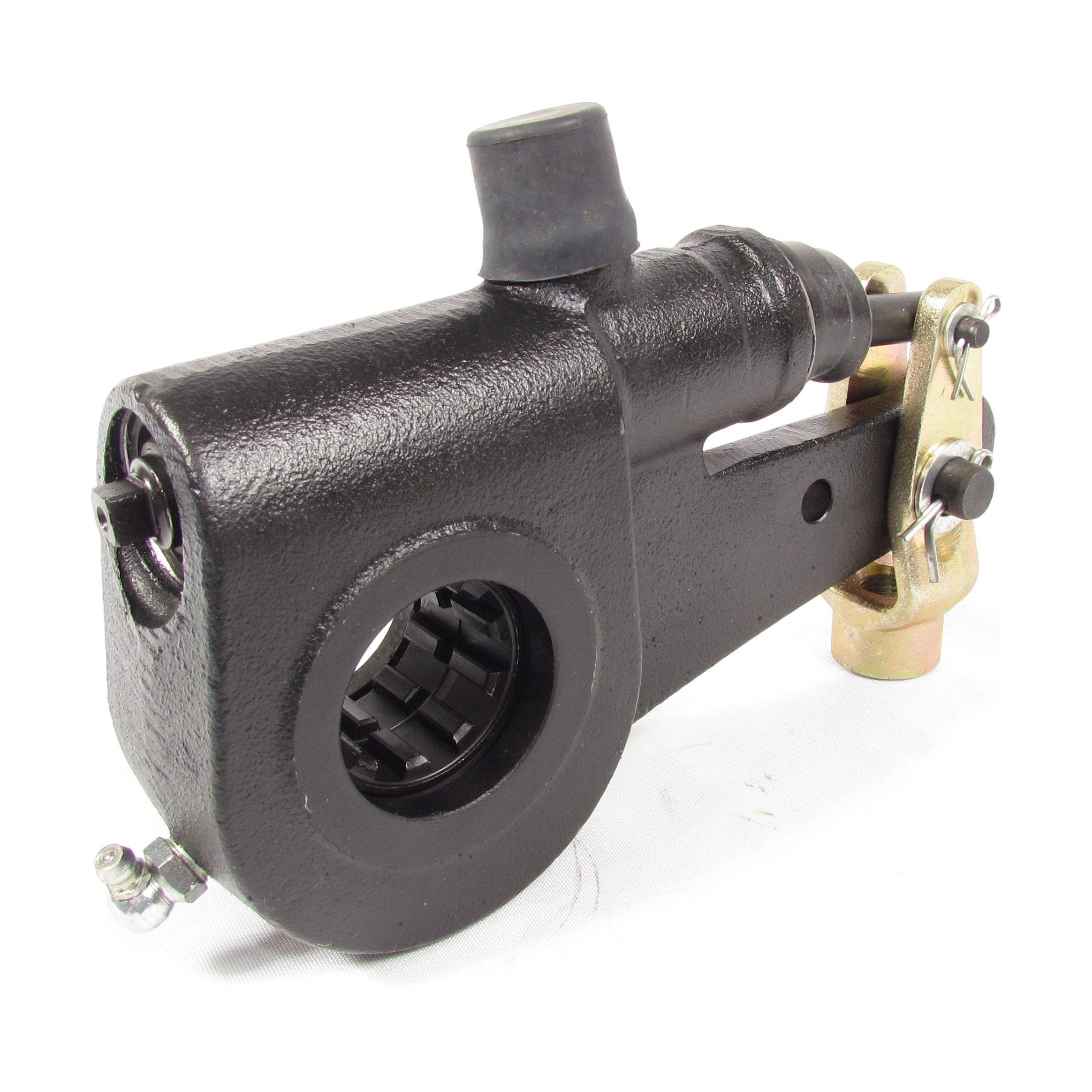

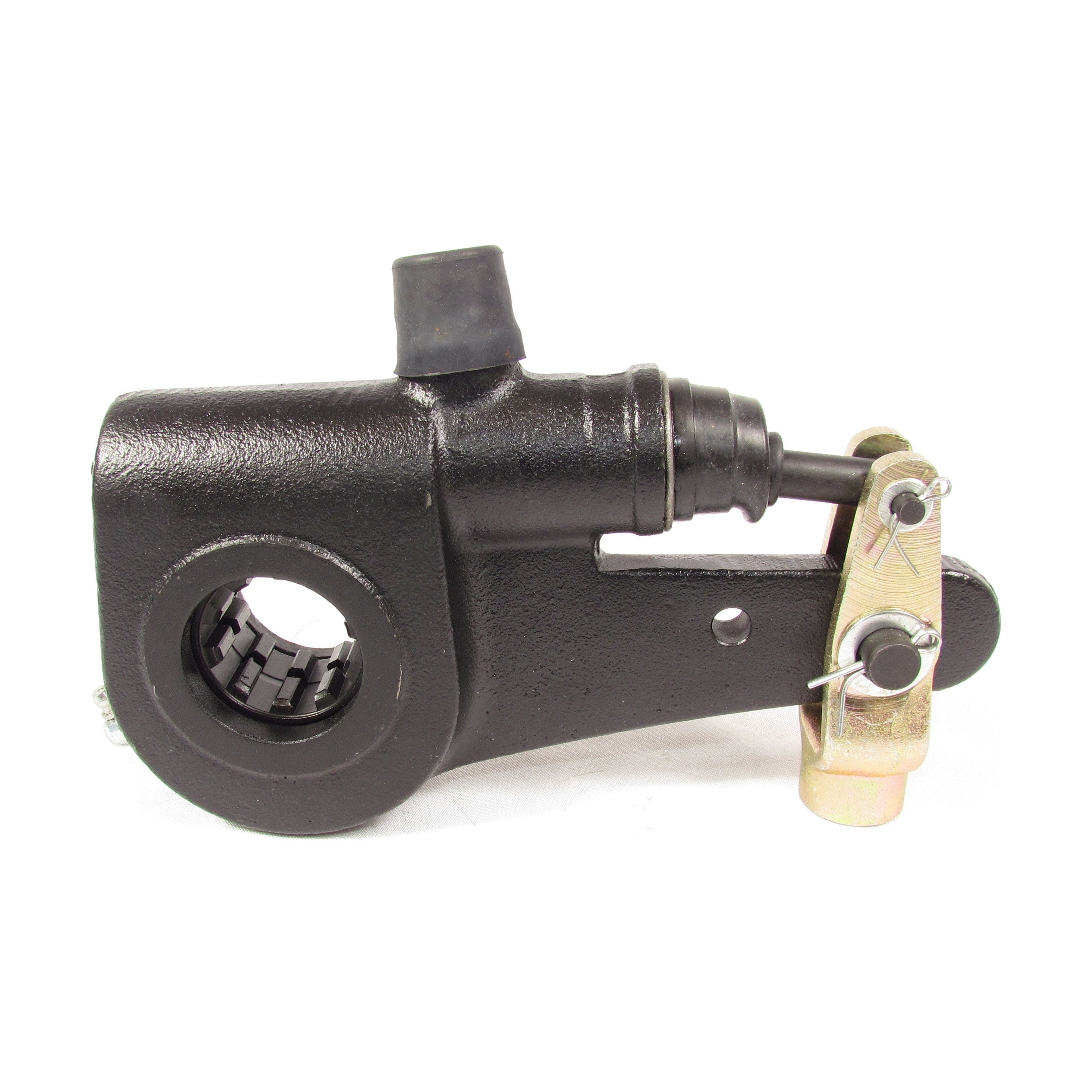

Meritor Style Automatic Slack Adjuster 1 1/2" 10 Spline 5 1/2 Arm - R801041 | Heavy Duty Truck & Trailer Brake System Replacement Part

Specifications:

• Brand: Fortpro
• Vehicle Type: Semi-Trucks / Heavy Trucks
• Product Department: Brakes
• Product category : Slack Adjuster
• OEM Reference: R801041
• Part Type: Automatic Slack Adjuster
• Style: Meritor
• Slack Spline Diameter: 1-1/2 in.
• Slack Spline Count: 10
• Arm Length 1: 5-1/2 in.
• Arm Length 2: N/A
• Arm Length 3: N/A
• Model: Automatic
• Clevis Type: Straight
• Clevis Thread Diameter: 5/8-18 UNF-2B
• Maximum Torque Rating: More than 45 In./Lbs.
• Arm Offset: No Offset
• Arm Bushing(s)Inside Diameter (ID): N/A
• Inclination Angle (Body Angle): 0 °
• Maximum Operating Temperature: 158 °F (70 °C)
• Minimum Operating Temperature: (-40 °F) (-40 °C)
• Material: Alloy Steel
• Type of Operation: Tension Adjuster - Torque
• Chamber Sizes: T-24, T-30
• Piston Color-Coded: Yellow Piston
• Application: Drum brake.

CrossReference:

• Automann: 1391031
• Dayton Parts: 5361
• Euclid: E11398, E11398A
• Meritor: R801041
