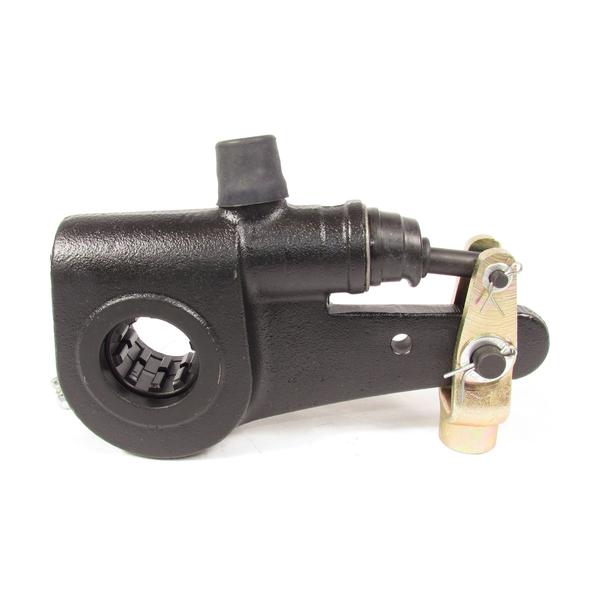

Meritor Style Automatic Slack Adjuster 1 1/4" 10 Spline 5.5 Arm - R801004 | Heavy Duty Truck Brake System Replacement Part for Improved Safety & Performance

Specifications:

• Brand: Fortpro
• Vehicle Type: Semi-Trucks / Heavy Trucks
• Product Department: Brakes
• Product category : Slack Adjuster
• OEM Reference: R801004
• Part Type: Automatic Slack Adjuster
• Style: Meritor
• Slack Spline Diameter: 1-1/4 in.
• Slack Spline Count: 10
• Arm Length 1: 5-1/2 in.
• Arm Length 2: N/A
• Arm Length 3: N/A
• Model: Automatic
• Clevis Type: Straight
• Clevis Thread Diameter: 5/8-18 UNF-2B
• Maximum Torque Rating: More than 45 In./Lbs.
• Arm Offset: No Offset
• Arm Bushing(s)Inside Diameter (ID): N/A
• Inclination Angle (Body Angle): 0 °
• Maximum Operating Temperature: 158 °F (70 °C)
• Minimum Operating Temperature: (-40 °F) (-40 °C)
• Material: Alloy Steel
• Type of Operation: Tension Adjuster - Torque
• Chamber Sizes: T-20
• Piston Color-Coded: Red piston
• Application: Drum Brake For Truck/Tractor

Cross-reference:

• Automann: 1391010
• Dayton Parts: 5370
• Euclid: E11395
• Haldex: CS56036
• Meritor: R801004
