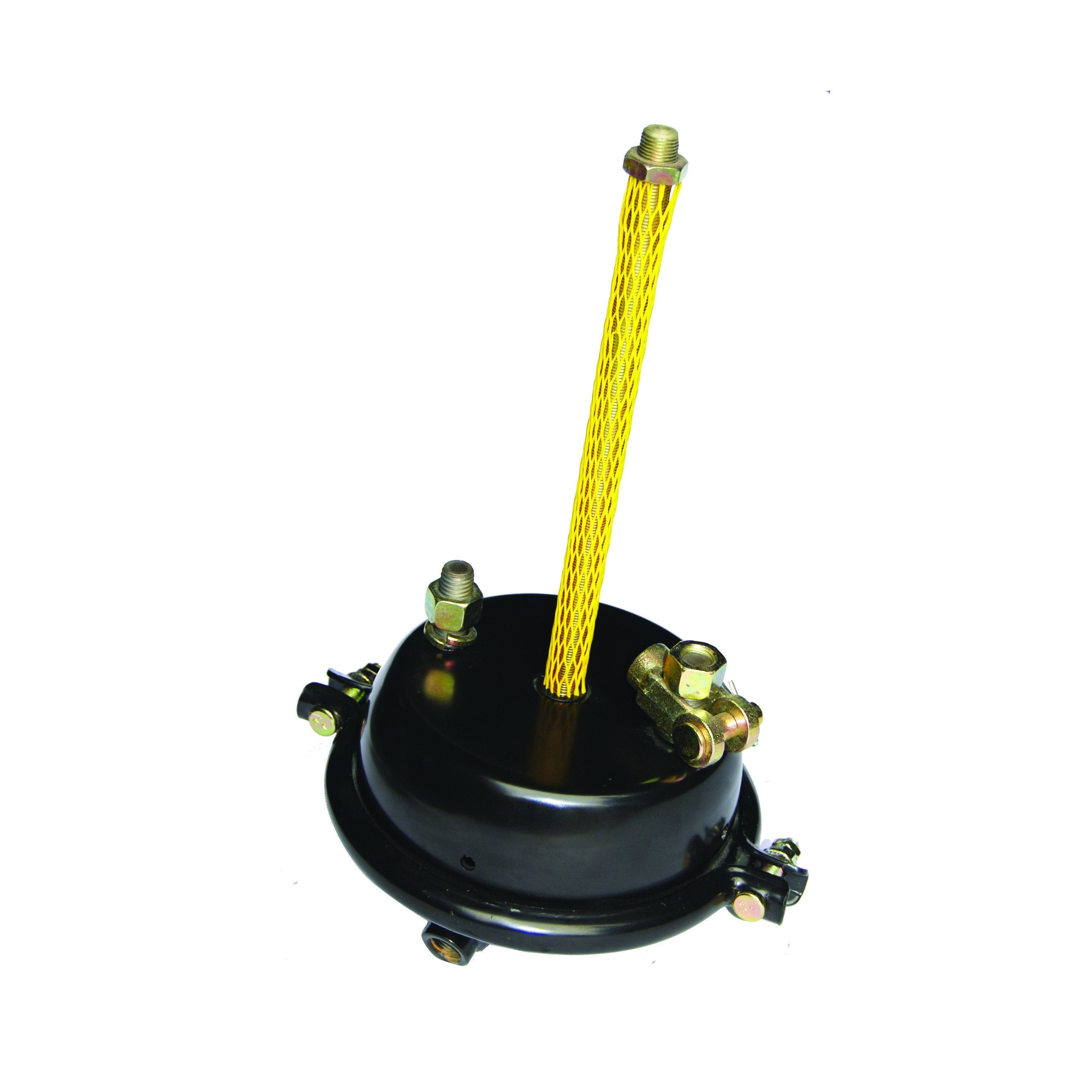

Optimize the safety and performance of your heavy truck with the Fortpro Type 12 Brake Air Chamber! Designed to directly replace the Bendix model 288795, this brake air chamber efficiently transforms air pressure into mechanical force, ensuring quick and precise braking response. Made from high-quality materials, the Fortpro camera is built to withstand the most demanding conditions, providing unmatched durability and reliability. Its perfect compatibility ensures a simple and hassle-free installation, reducing your vehicle's downtime. In addition, its design facilitates maintenance of the brake system, ensuring that your truck is always in optimal operating conditions. With the Fortpro Type 12 Brake Air Chamber, you can rely on consistent, safe performance on every ride.
Specifications:
- Brand: Fortpro
- Vehicle Type: Semi-Trucks / Heavy Trucks
- Product Department: Brakes
- Product category: Brake Chambers
- Part Type: Air Brake Chamber
- Also Known as: Brake Canister / Brake Can / Air Brake Canister / Brake Pod / Brake Pots
- Chamber Type: Service Brake Chamber
- Model: T12, T-12, 12
- Stroke: Standard Stroke
- Stroke Lenght: 1.75 in. (44.5 MM)
- Outside Diameter (O.D.): 4 in.
- Brake Type Support: Drum
- Serviceability: Serviceable
- Push Rod Thread: 1/2-20 UNF-2A
- Push Rod Length: 10.50 in.
- Service Port: 3/8-18 NPTF
- Emergency/Release Port: N/A
- Port Angle: 90 °
- Clevis Included: Included
- Clevis Mounting: Threaded
- Maximum Pressure: 150 PSI
- Mounting Bolt Thread: 7/16-20 UNF-2A
- Mounting Bolt Length: 1.50 in. (38.1 MM)
- Brake System Compatibility: S-Cam
- Chamber Style: Single Diaphragm
- Service Chamber Joint Type: Single Clamp Band
CrossReference:
- Bendix: 288795N, 288795
- Mack: 745288795, 745-288795
- PAI: HSC-0214-100
