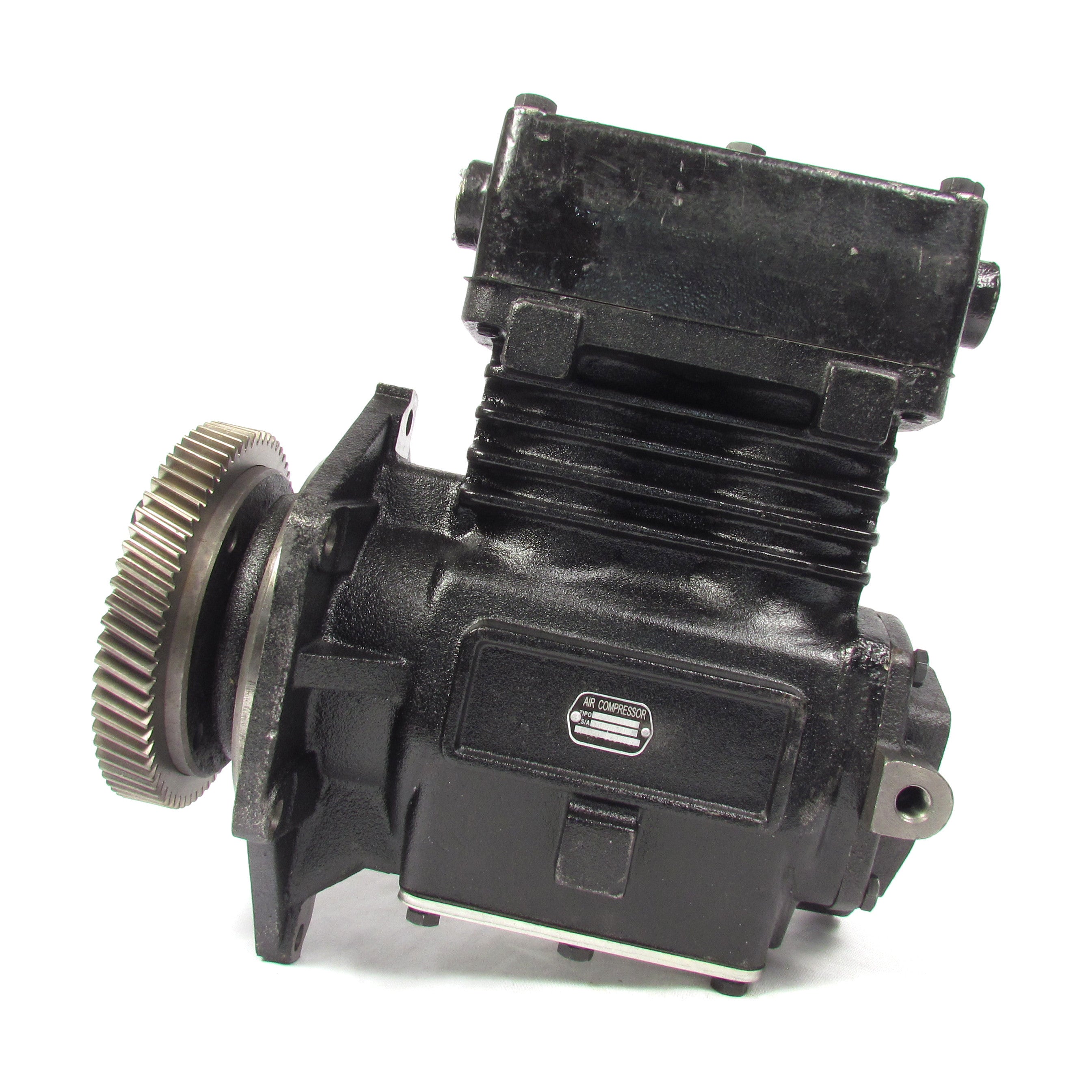

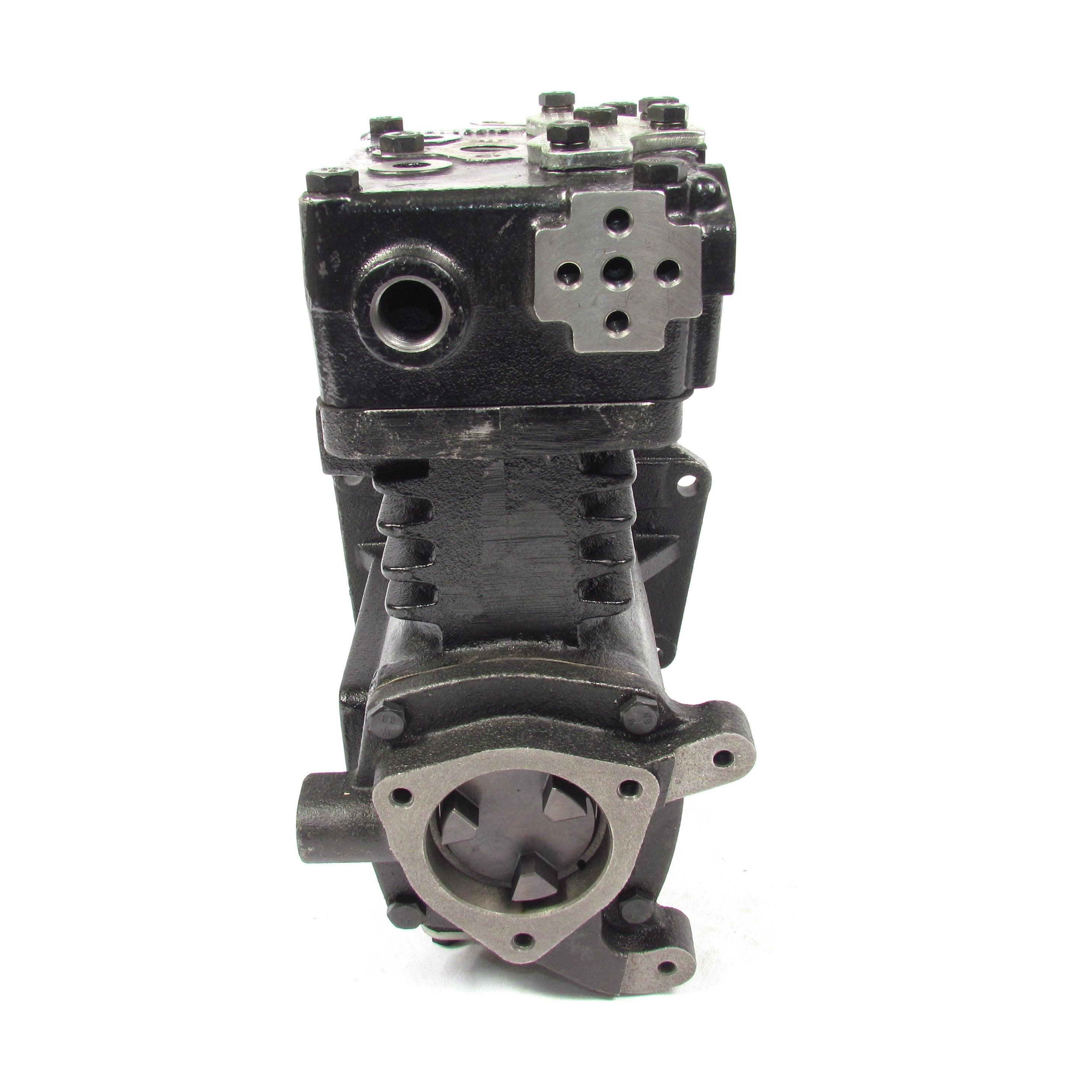

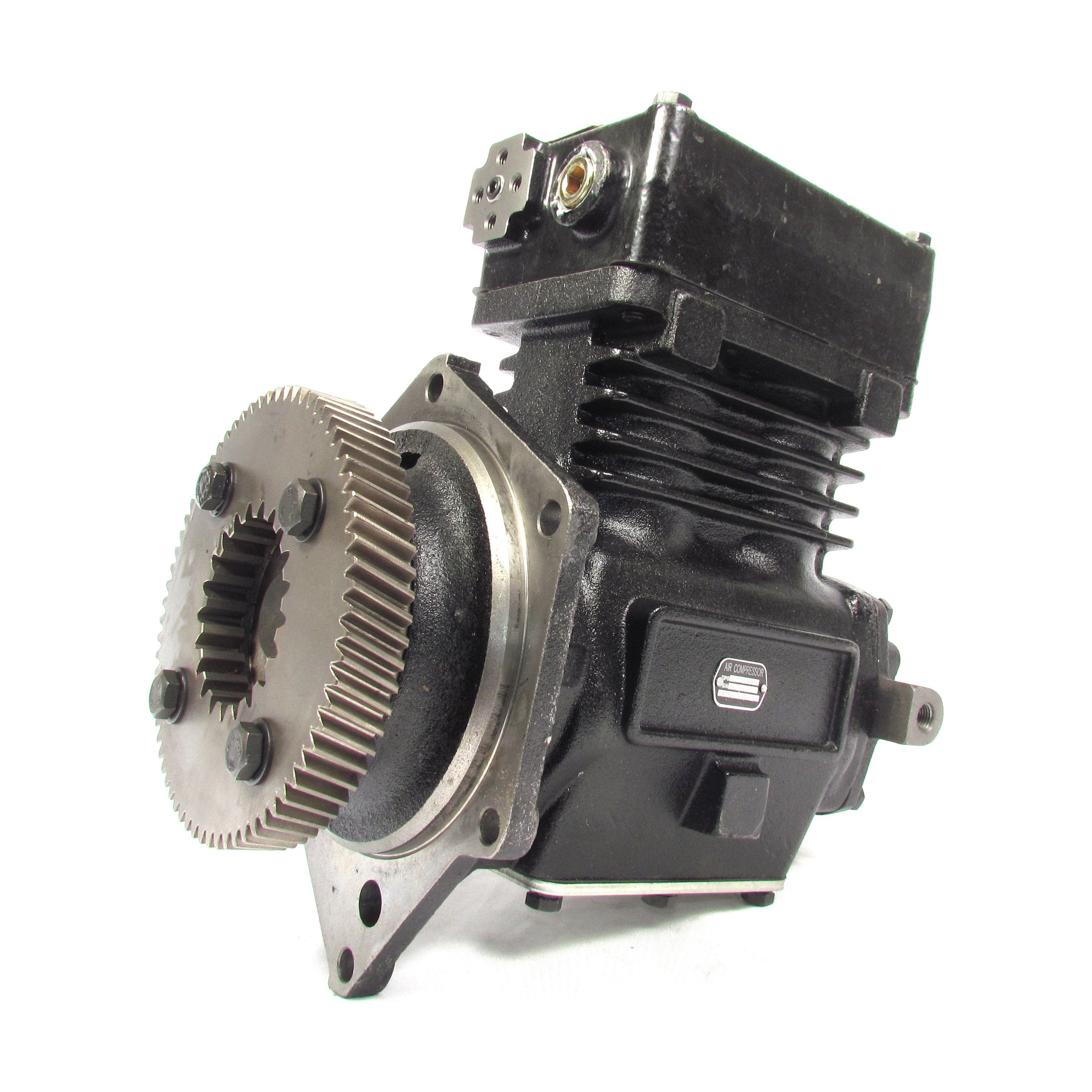

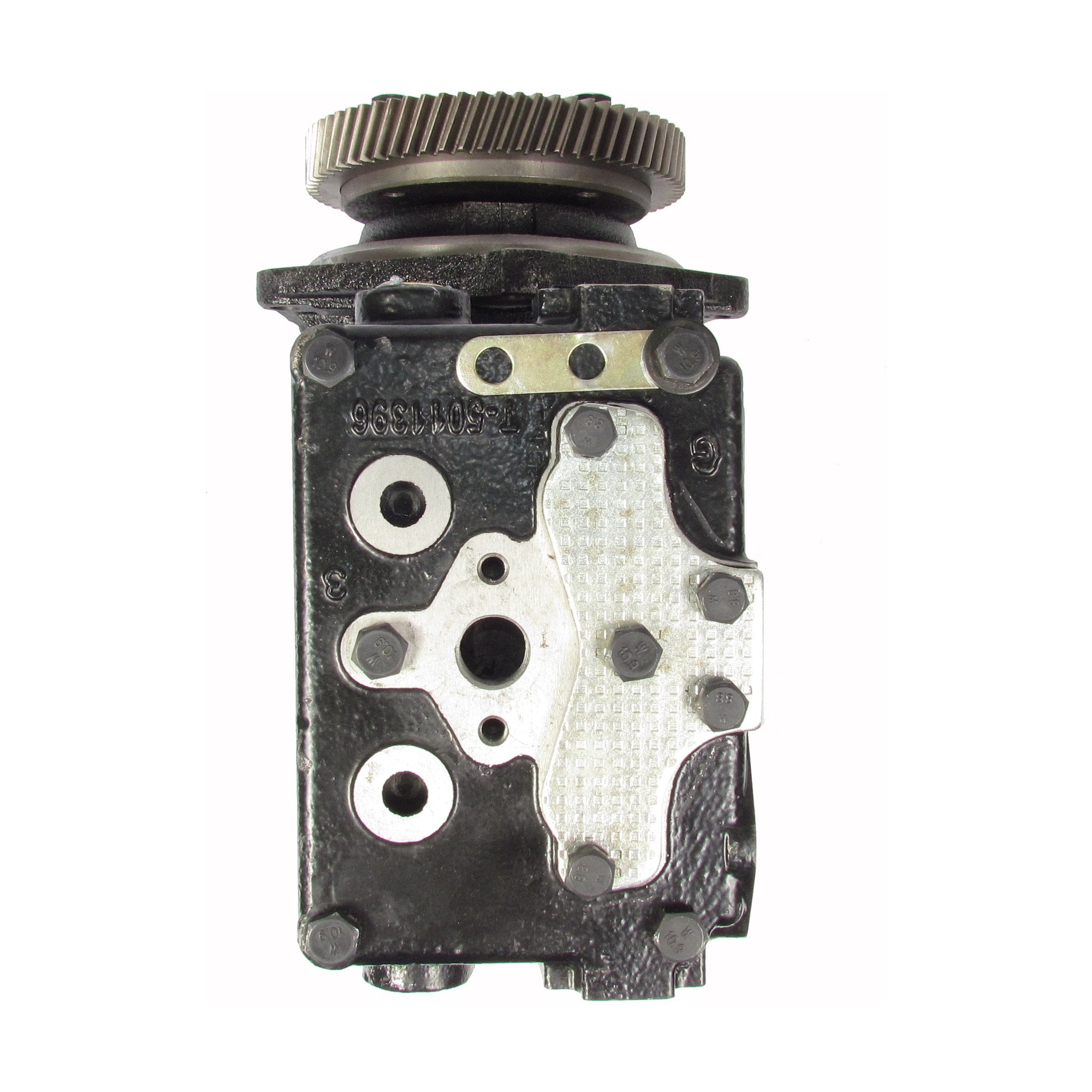

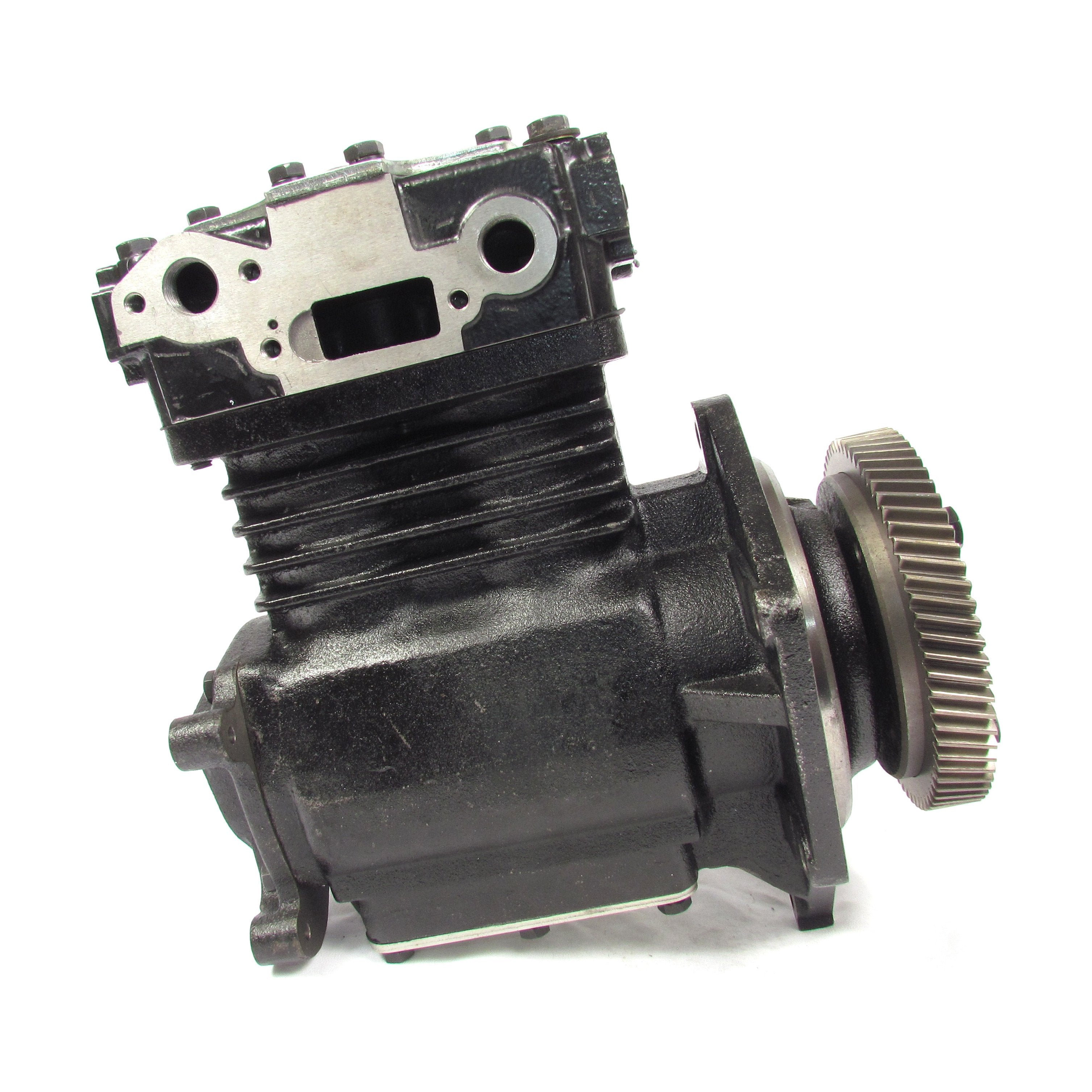

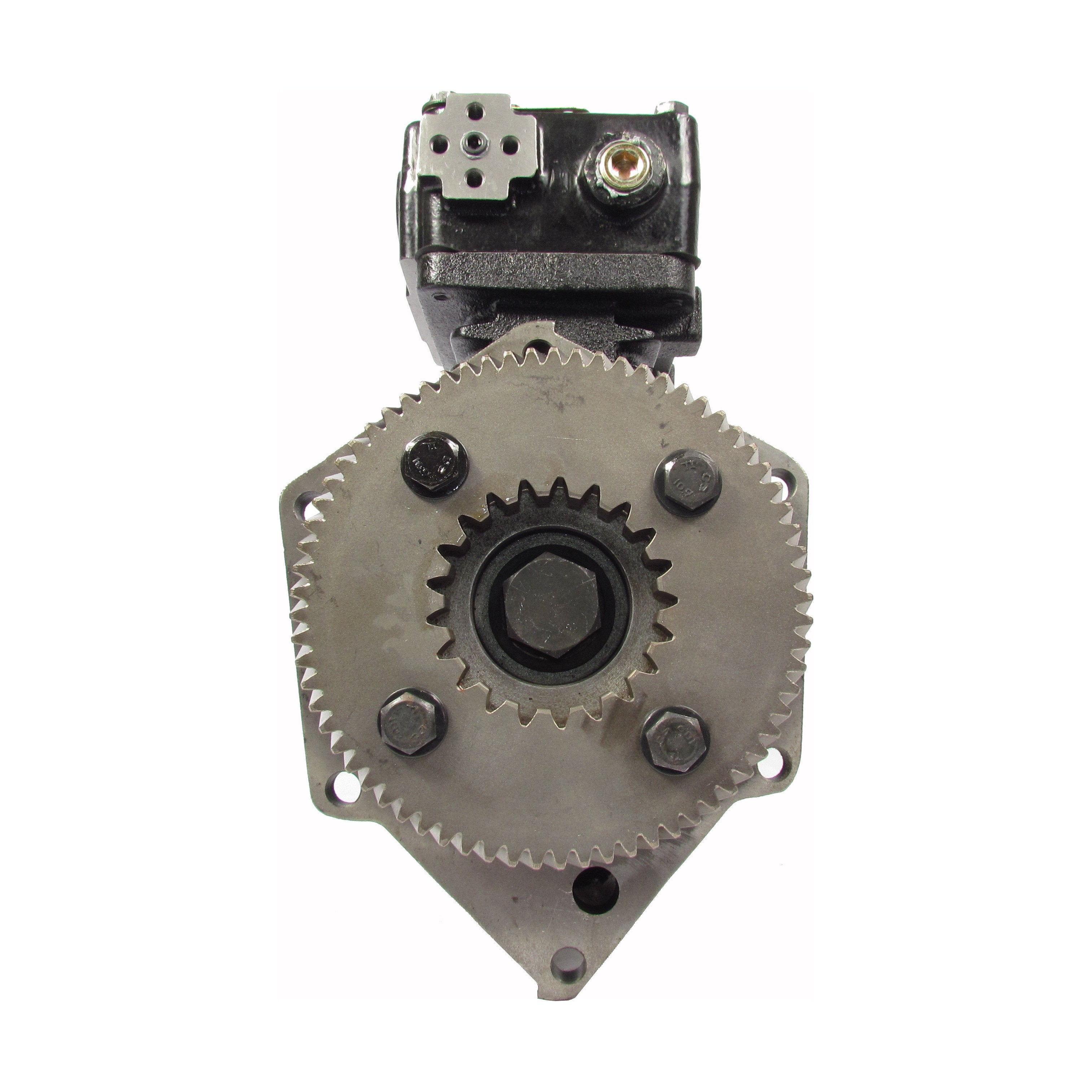

Optimize your heavy-duty truck's braking performance with the Detroit Tu-Flo 550 Air Brake Compressor! Precision engineered and manufactured from high-quality materials, the Tu-Flo 550 offers reliable, long-lasting compression of the air needed to activate your vehicle's air brakes. This rugged compressor, backed by Detroit's reputation for quality, efficiently replaces model 109429, ensuring a perfect fit and optimal performance in your truck. Trust the Tu-Flo 550 for safe, worry-free driving on the road.
Specifications:
- Brand: Fortpro
- Vehicle Type: Semi-Trucks / Heavy Trucks
- Product Department: Brakes
- Product category: Air Brake Compressors
- Part Type: Air Brake Compressor
- OEM Reference #: 109429, 5004188X
- New or Reman: New
- Model : Tu-Flo 550
- Freight Class: 60
- Operation: Engine Driven
- Height: 12.00 in.
- Length: 9.9 in.
- Cooling: Water/Air
- Air Inlet: Right
- Air Outlet: Top/Right
- Discharge Type: Optional
- Mount Style: Flange Mount
- Outlet Port Thread Size: 1/2-14 in. NPT
- Material: Stainless Steel
- Applications:
Detroit Diesel Engine Series 60, non EGR, 69 tooth gear, 21 tooth spline.
Detroit Diesel Engine Series 50, 69 tooth gear, 21 tooth spline.
CrossReference:
- Bendix: 109429, 5004188, 5004188X
- Detroit: R23516840, 23522122
- Euclid: EBN109429X
- Freightliner: ABPRC105004082, APRC105004082
