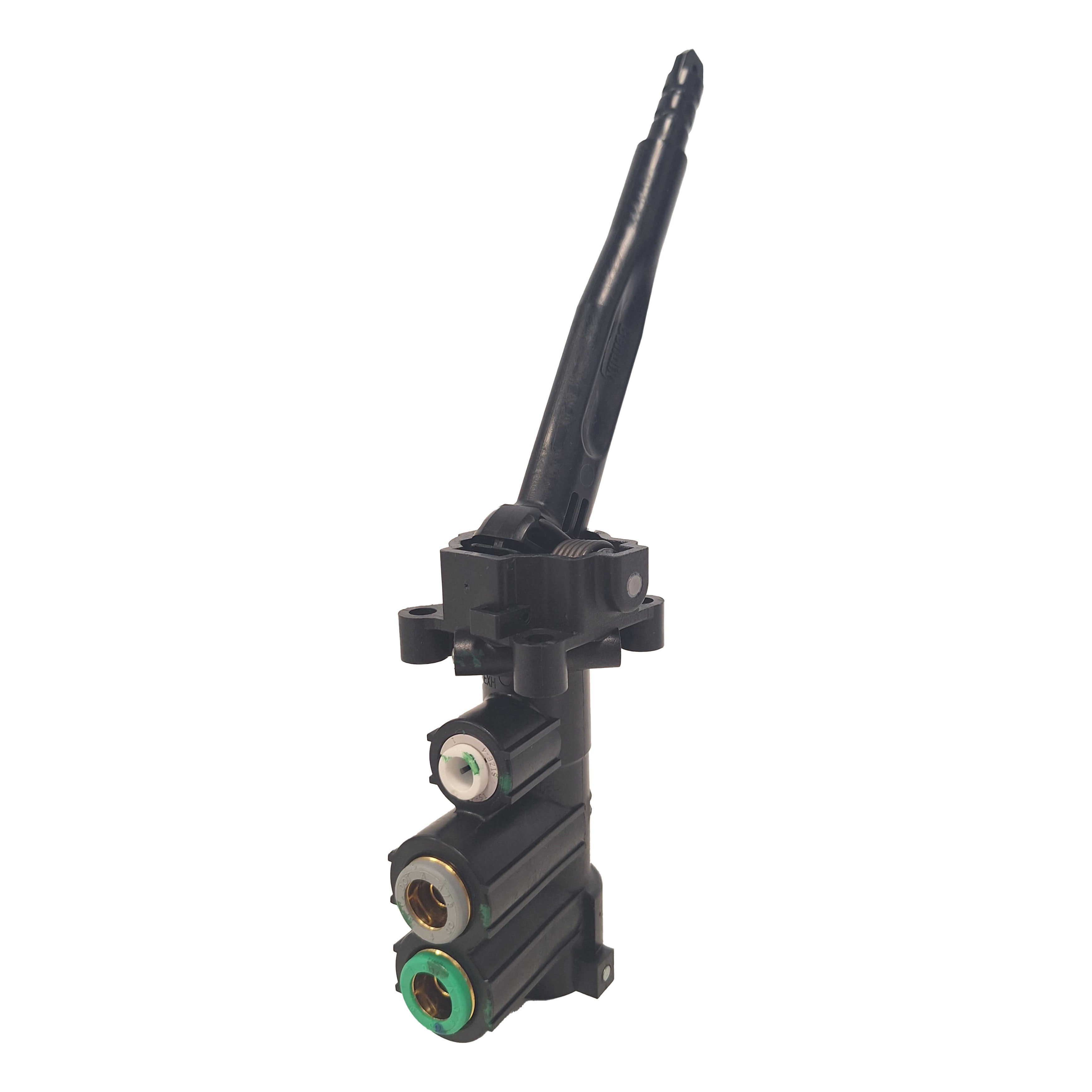

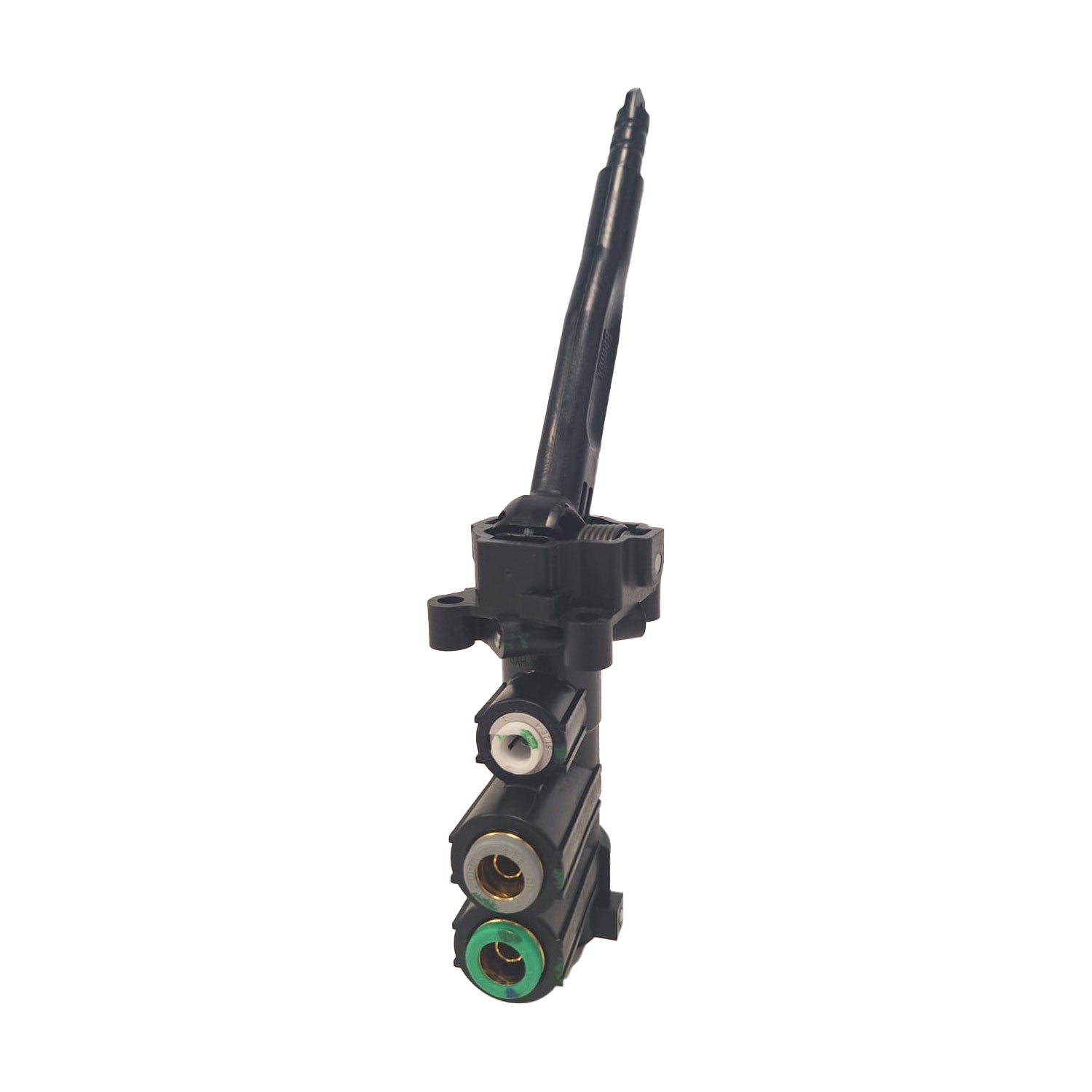

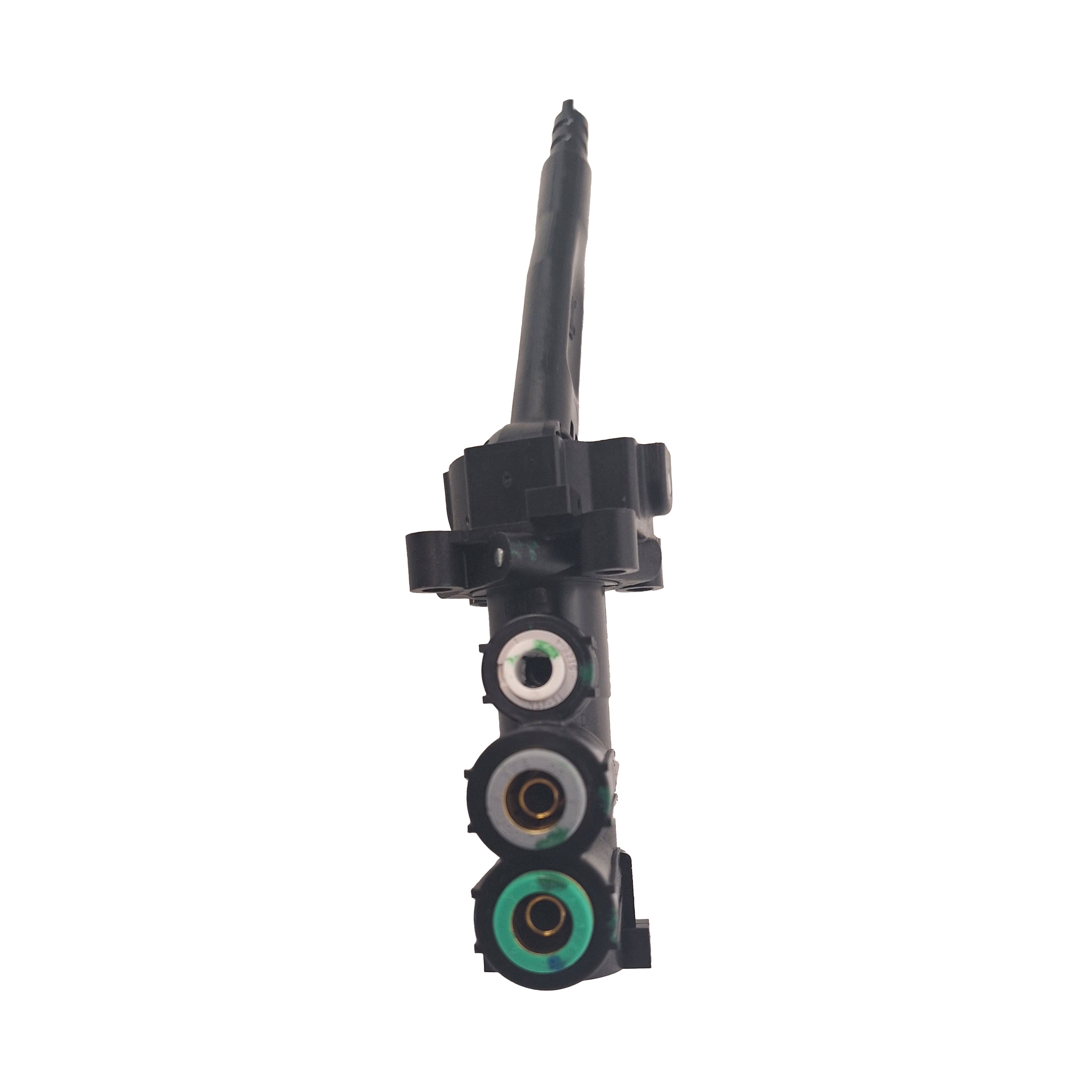

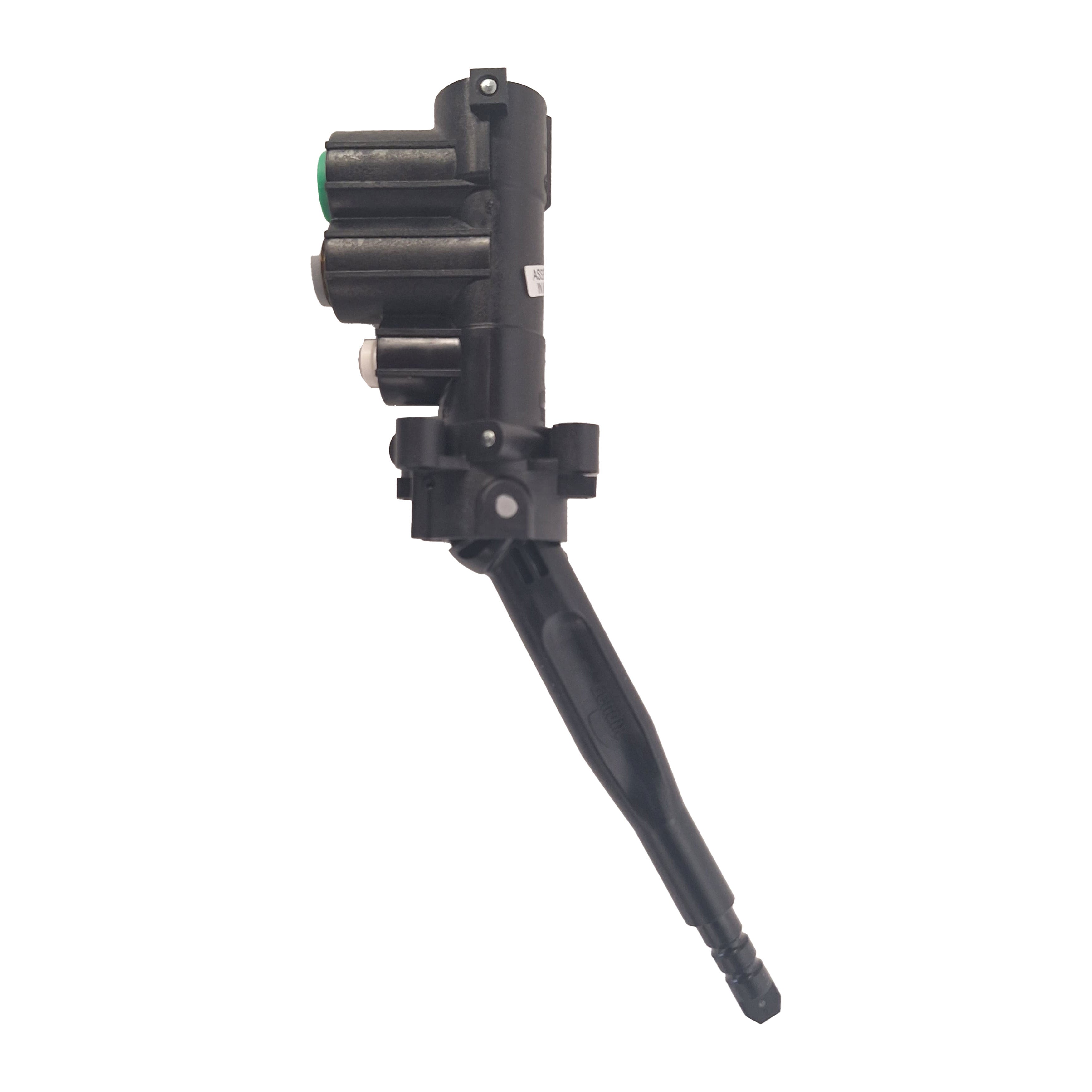

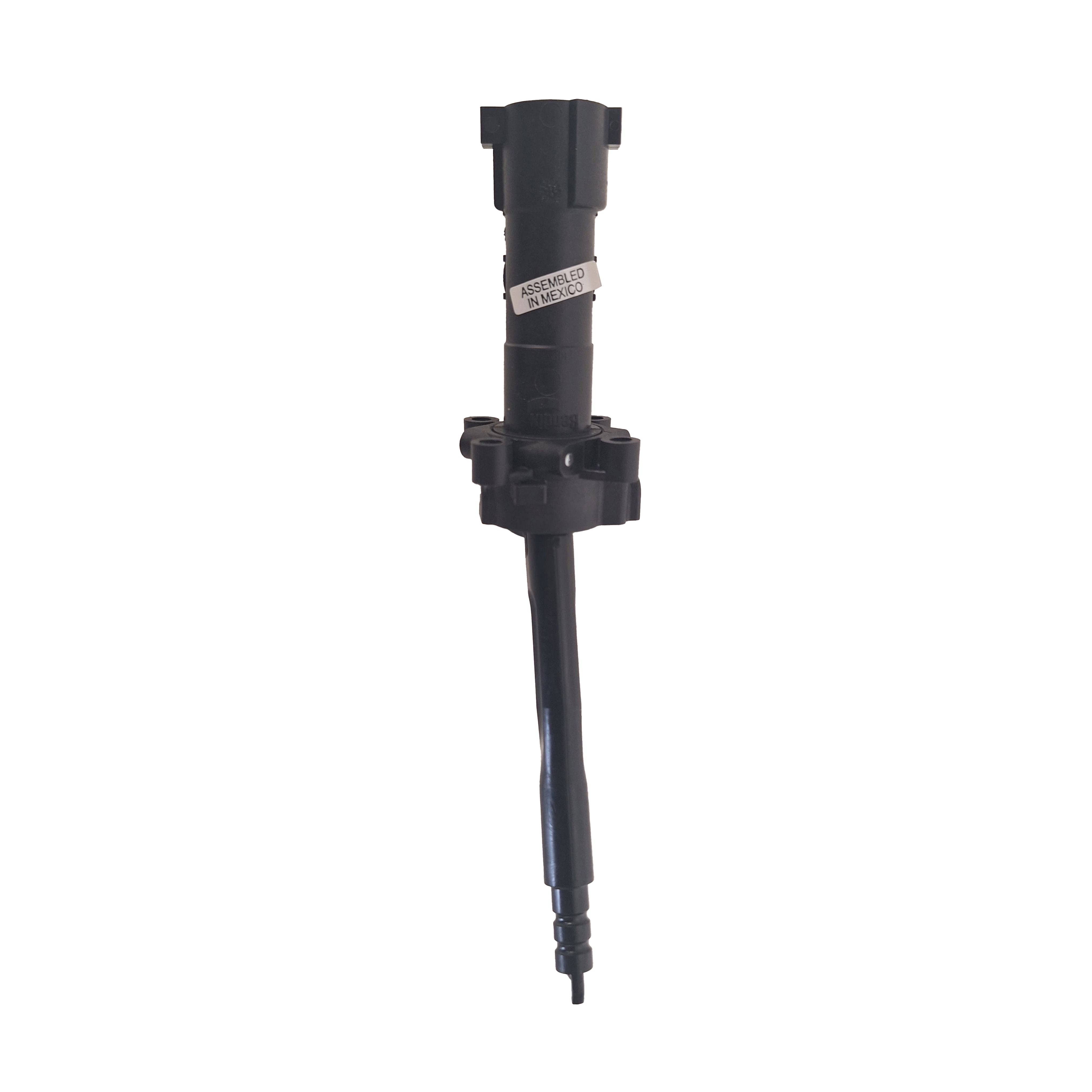

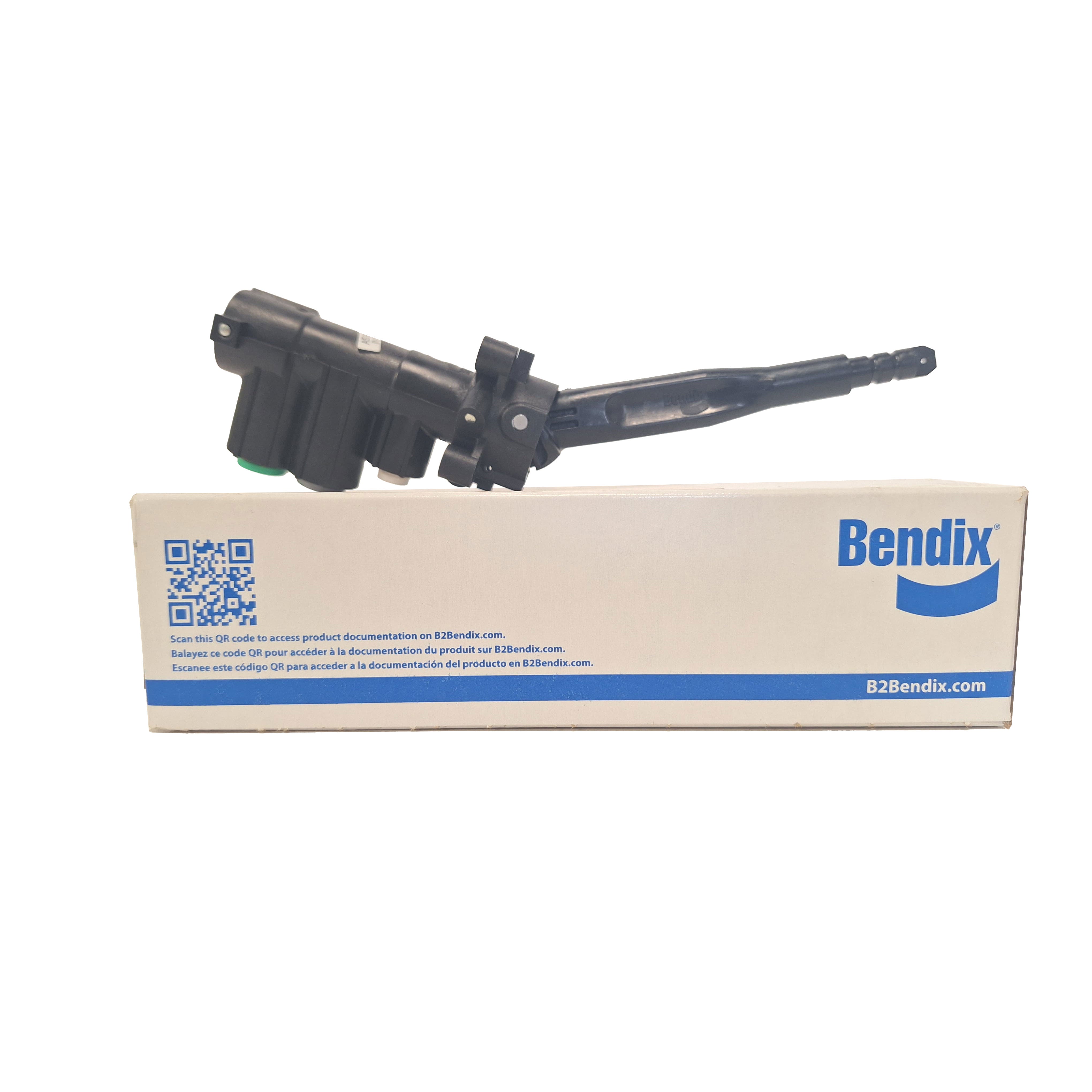

Total control in the palm of your hand. The Bendix® TCS-9000™ Control Brake Valve allows you to independently manage your trailer brakes, offering smooth, precise control from the dashboard. Ideal for trucks requiring precise, safe maneuvers, this lever-actuated valve delivers proportional pressure without abruptness. Its maintenance-free design and superior Bendix® quality ensure long-lasting performance under the most demanding conditions. Compatible with most pneumatic systems on the market, this part is essential for professional transporters seeking safety and efficiency.
Specifications:
SKU: 25111676
OEM Reference: 802033
Part Type: Trailer Control Valve
Product Department: Brakes
Product Category: Air Brake Valves
Vehicle Type: Heavy Duty Trucks, Semi-Trucks
Also known as: Control Brake Valve
Model: TCS-9000
Supply Port: 3/8 PTC (Straight)
Delivery Port: 3/8 PTC (Straight / Gray Cap)
Exhaust Port: 1/4 PTC (Straight / Composite)
Mounting Valve: Ø .218 in. x 4
Mounting Location: Dash Mount
Material: Plastic
Graduating Pressure Range: 0 - 40 PSI
Final Delivery Pressure: 120 PSI
Handle Shape: Straight
Total Handle Travel: 55°
Handle Material: Plastic
Maximum Operating Temperature: 200 °F (93 °C)
Minimum Operating Temperature: -40 °F (-40 °C)
Cautionary Note: Exhaust Port must vent to atmosphere - do not pressurize
Weight: 0.5 Lbs
Application: Pneumatic service brake system, acting as a trailer brake control valve (trailer service brake control). Specifically designed for use on heavy commercial vehicles, such as tractor-trailers, rigid trucks with towing capacity, and units with air brake systems, especially within the tractor-trailer environment.
Cross-References:
Bendix: 802033
Mack: 25111676, 745-802033
