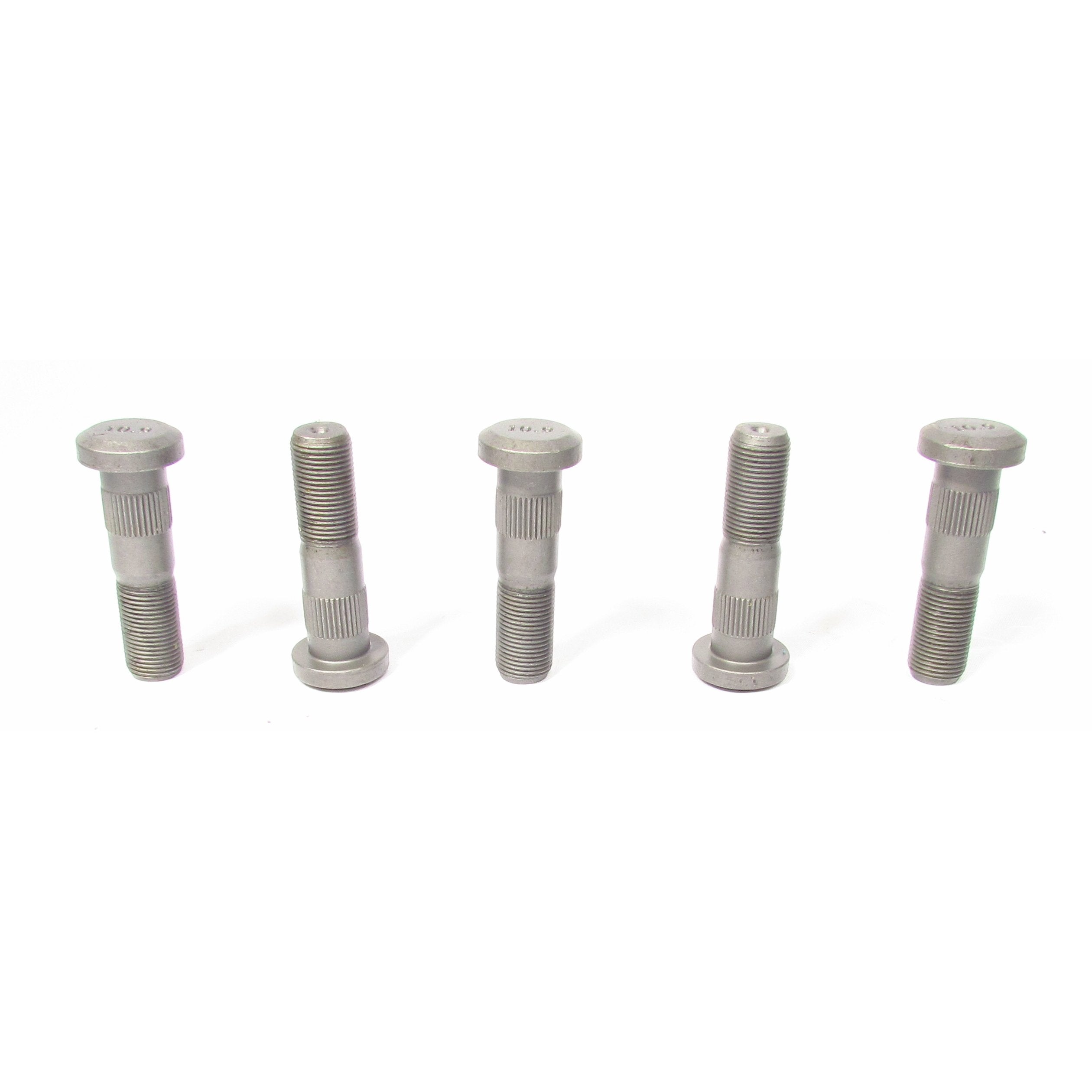

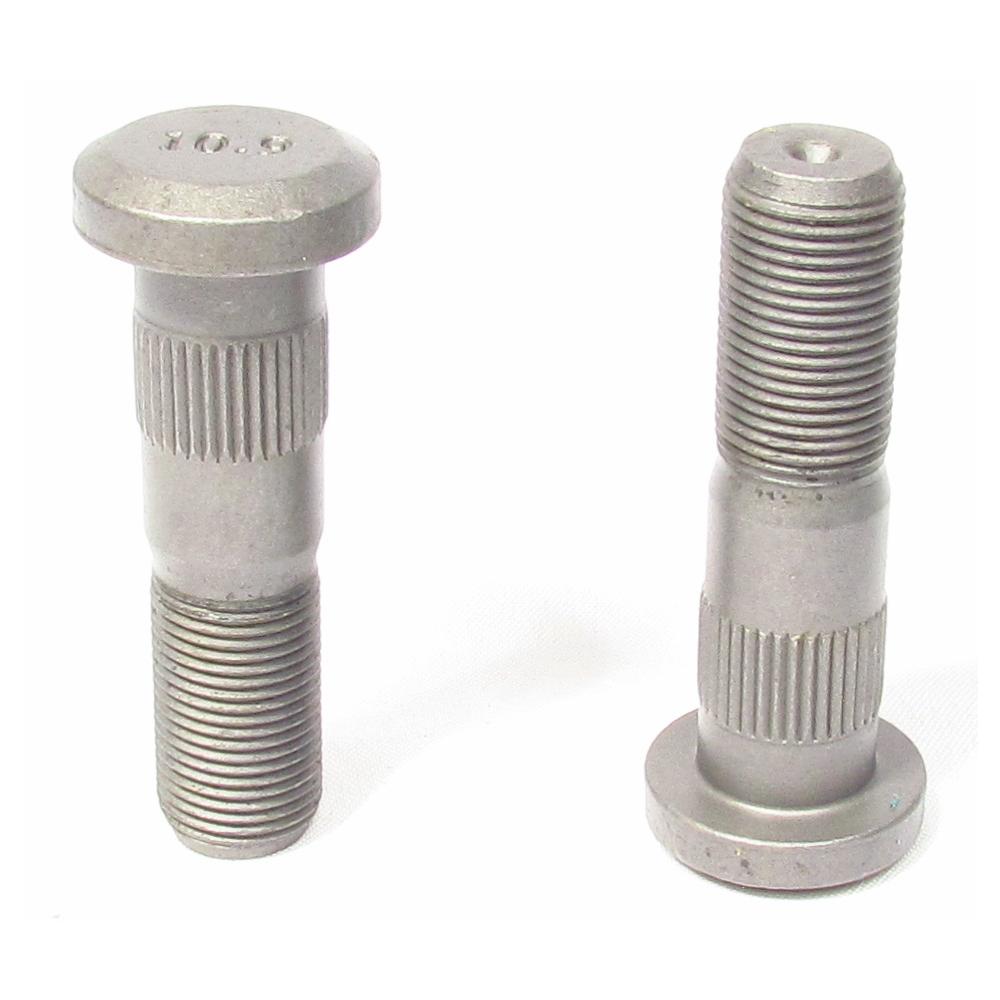

Fortpro 3/4"-16 Drum Shoulder Wheel Stud F286679 is a high quality wheel stud designed to provide a secure and reliable hold on heavy duty vehicles. These wheel studs are especially well suited for applications requiring exceptional strength and durability prolonged
Specifications:
- Brand: Fortpro
- Part Type: Wheel Stud / Left Hand Wheel Stud / Drum Shoulder Wheel Studs
- Vehicle Type: Semi-Trucks, Heavy-Duty Trucks
- Part OEM: E4968L, E4968R
- DIN / ISO Grade: 10.9
- Type: Headed
- Metric Thread Size: 3/4"-16 UNF-2A

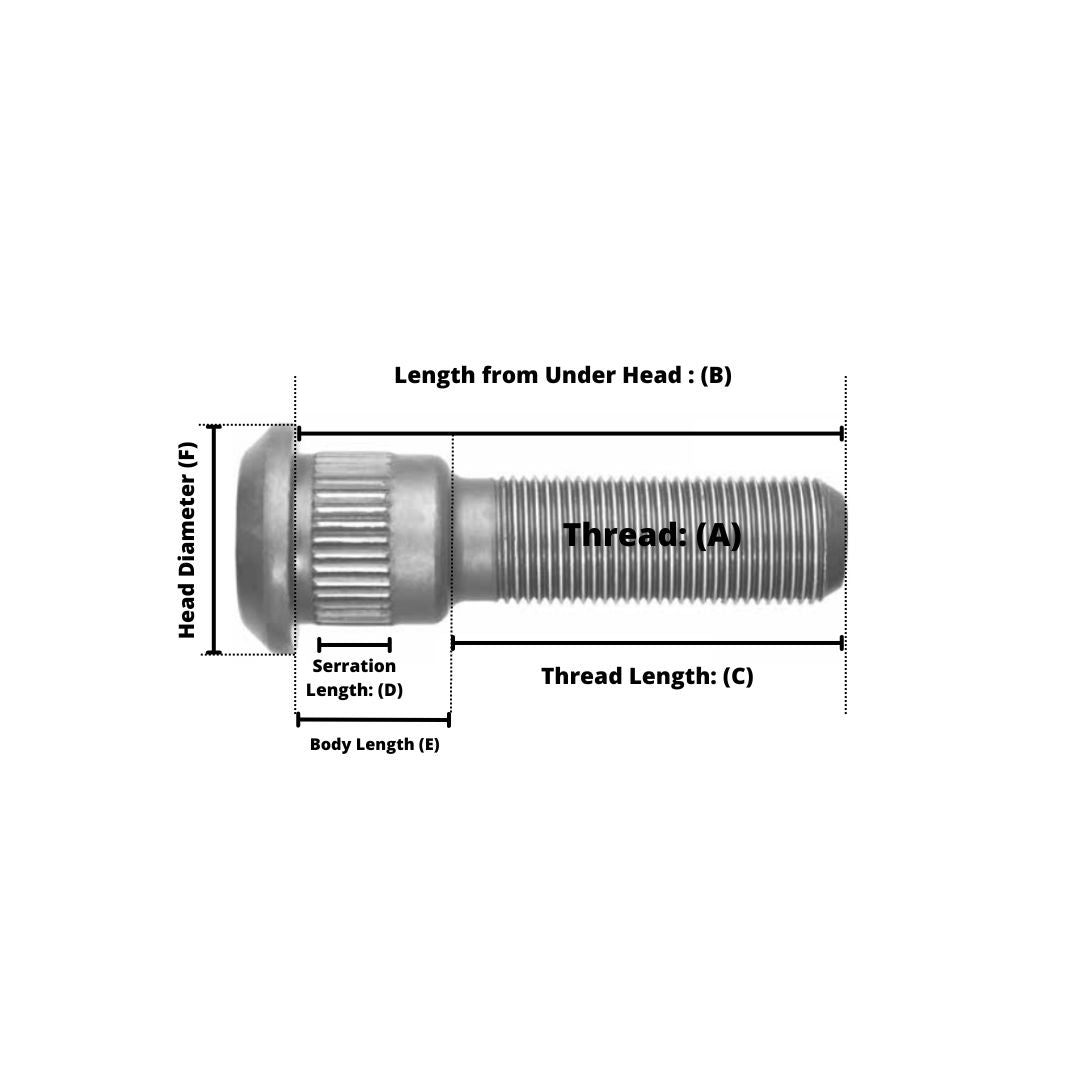

- Body Length (E): 1.50"

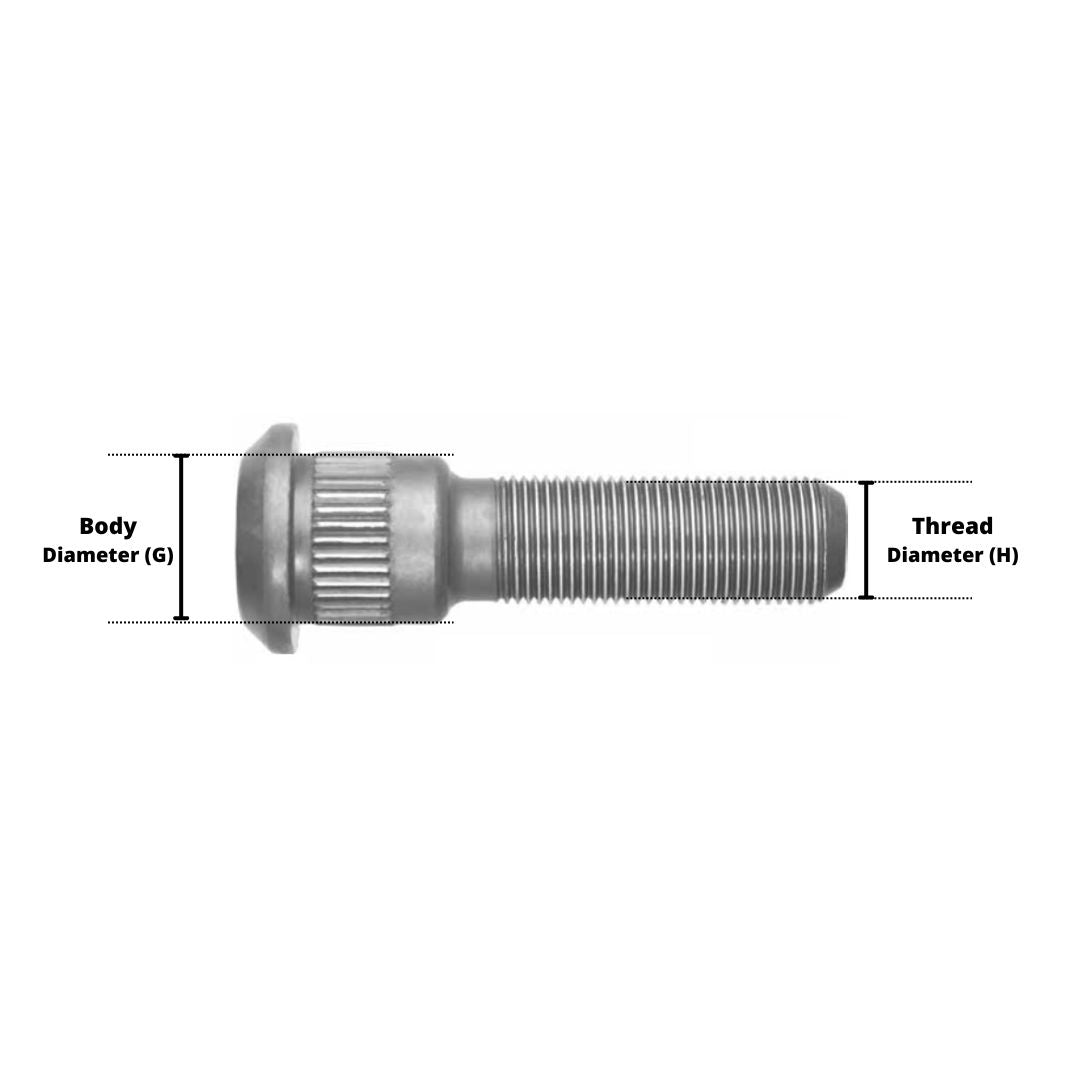

- Body Diameter (G): 0.785"
- Length from Under Head (B): 2 7/8"
- Head Diameter (F): 1.28"
- Head Style: Round
- Head Thickness: 0.31"
- Thread (A): 3/4"-16
- Thread Diameter (H): 0.75"
- Thread Direction: LH (Left Hand), RH (Right Hand)
- Threads per Inch: 16
- Thread Length (C): 0.97"
- Serration: Serrated
- Serration Length (D): 0.50"
- Serration Diameter: 0.820"
- VMRS: 018-003-009
- Item Package Quantity: 10
- Notes: Grade 10.9 is the metric equivalent of Grade 8
CrossReference:
- Automann: 2016067L, 2016067R
- BWP: M81
- Budd: 49852
- Dayton Parts Batco: 131104L, 131144L, 131104R, 131144R
- Euclid: E4968L, E4968R
- Fruehauf: MWCX01385
- Haldex: 67248
- Meritor: R004968L, R004968R
- Spicer: 501128L, 501128R
- World Truck: 1541705L, 1541705R
