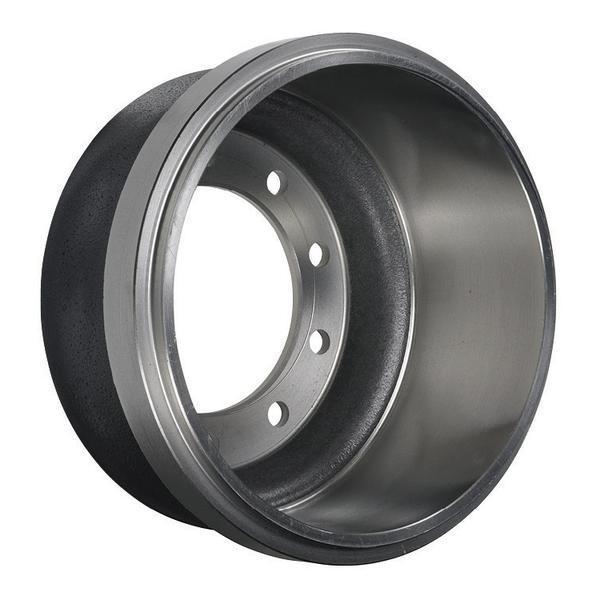

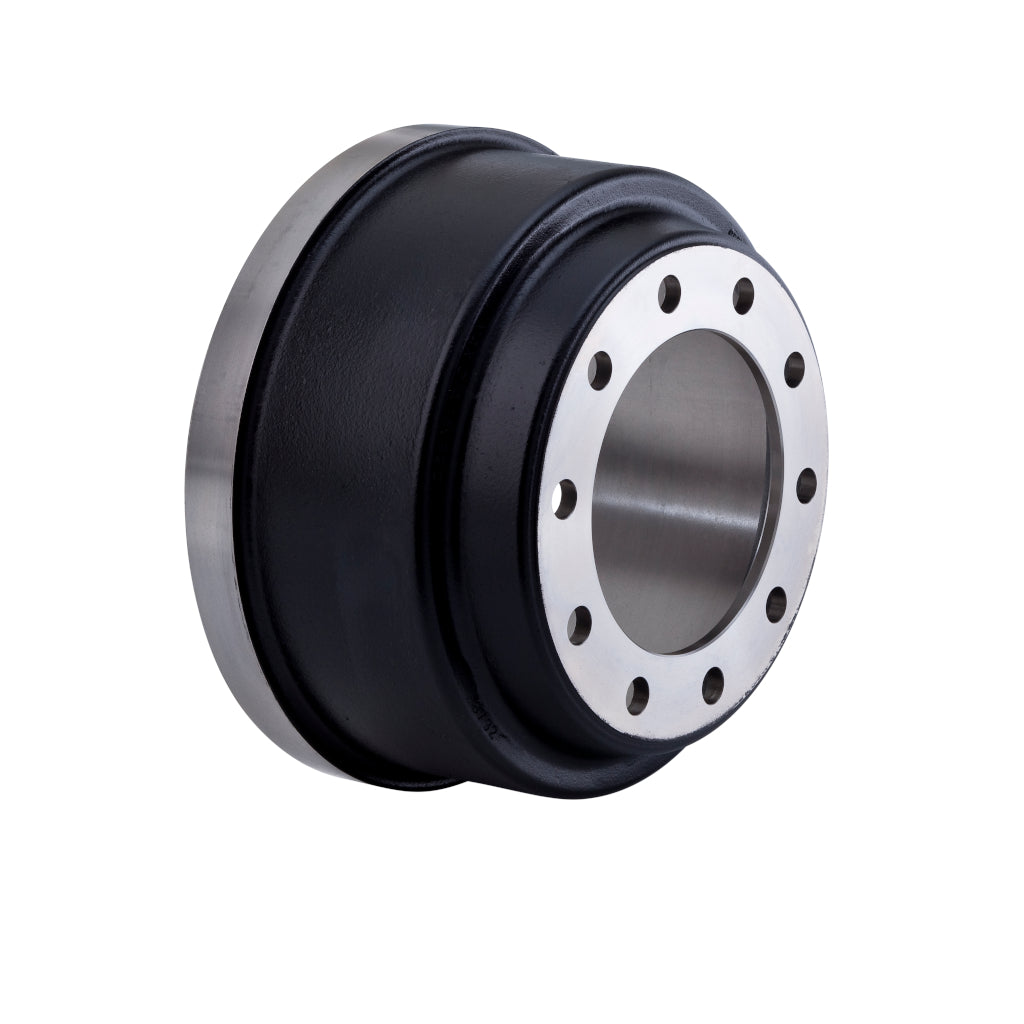

Fortpro 3600AX Rear Brake Drum for 16.50 x 7.00 Brakes with 8.78 Pilot HP Balanced | F224935 | Heavy-Duty Replacement for Trucks & Trailers | Perfect for Towing & Commercial Use

Fortpro Drum Brakes are precision-machined to provide an optimal fit and performance. This means that you can count on our brakes to deliver consistent and reliable stopping power every time you hit the brakes. In addition, our Front Drum Brakes are designed to meet or exceed OEM specifications, so you can be confident that they will work seamlessly with your vehicle.

Whether you are driving a semi-truck, light truck, or heavy-duty commercial vehicle, our Drum Brakes are sure to provide the reliable and high-quality braking performance you need to stay safe on the road.

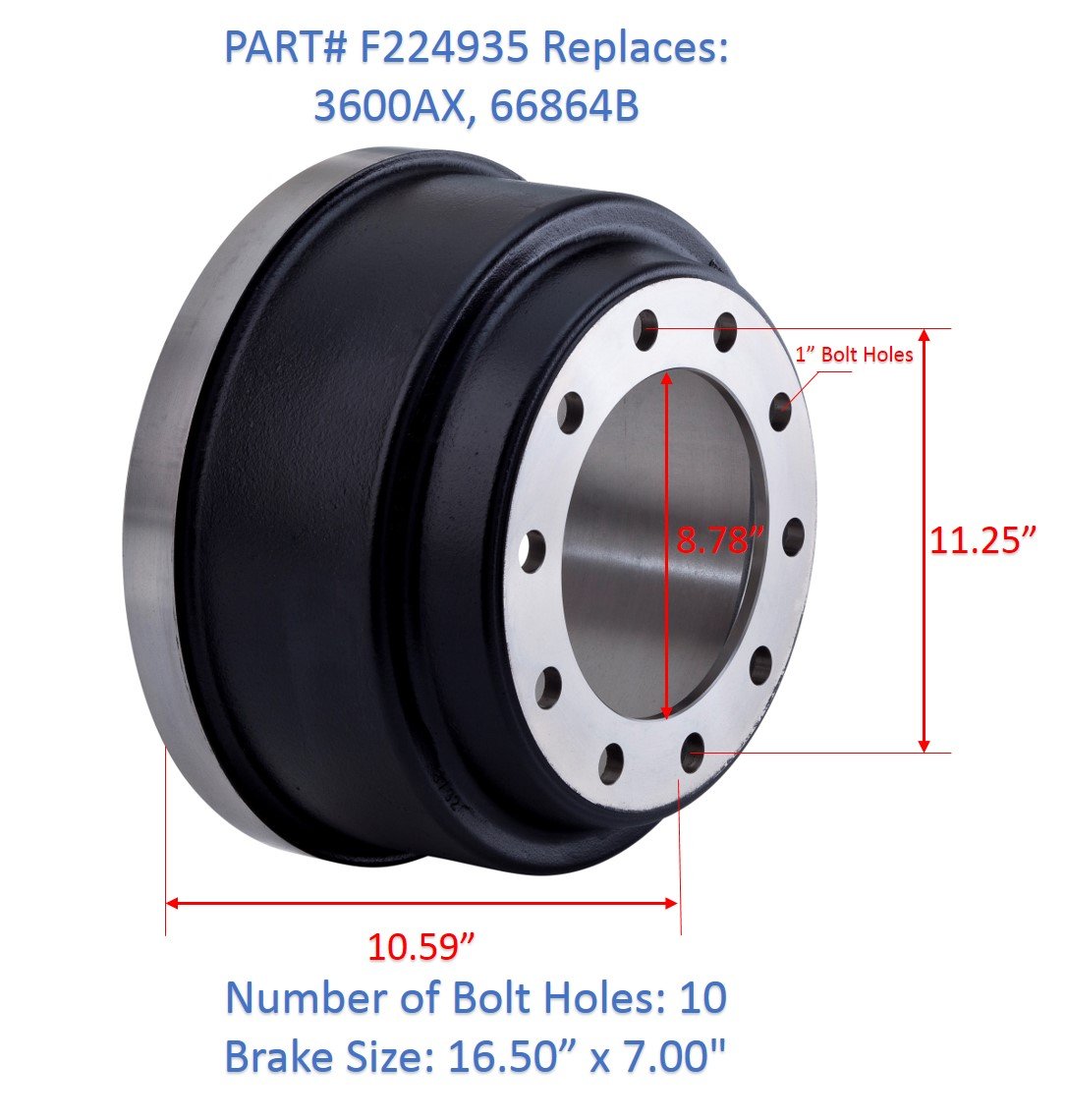

Specifications:

• Brand: Fortpro
• Part Type: Brake Drum
• Vehicle Type: Semi-Truck
• Brake Surface Diameter: 16.50"
• Overall Depth: 10.59"
• Brake Surface Flat: 8.00"
• Pilot Dia:: 8.78"
• Bolt Circle Dia: 11.25"
• Bolt Hole Size: 1.00"
• Number of Bolt Holes: 10
• Brake Size: 16.50” x 7.00”
• Wheel Type: Disc
• Material: Cast Iron
• Application Info: Rear Brake Drum

CrossReference:

• Gunite: 3600AX, 3600A, 3922X
• Mack: 17QJ4116
• Stemco: 600084, 89996B
• Webb: 66864B
